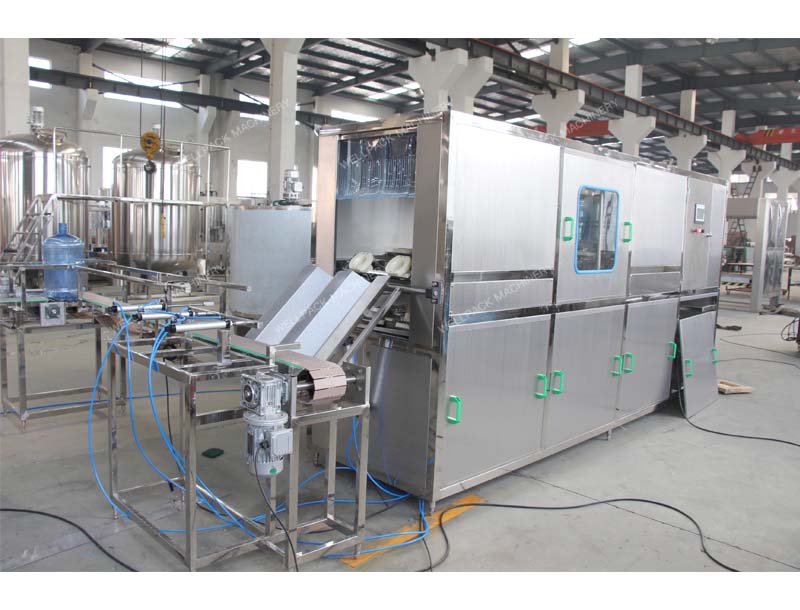

5 Gallon Bottling Line
Function: 5 Gallon Jug Washing Filling Capping
Filling Material: Purified Water & Spring Water & Mineral Water & Distilled Water
Model: QGF-300
Capacity: 300BPH
Bottle Type: 5 Gallon Jug with PE Cap
Machine Material: SUS 304
Main Machine Size (L*W*H): 4400*1950*2250mm
Certificate: CE ISO
Warranty: 3 Years
5 Gallon Bottling Line
This QGF Series 5 Gallon Bottling Line is used for bottling water in 5 Gallon Jug with PE Cap.
The three functions of washing, filling and capping are in one unit. Whole process is automatic.
The height of bottle washing, filling and capping can be adjusted to adapt to different height containers, and it is convenient to replace bottle type.
The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient.
It is the ideal equipment for mid-scale & small-scale water factory.
Process chart:
5 Gallon Jug → automatic decapping machine → automatic outer brushing→ automatic up-jug system → automatic washing-filling-capping → light check → heat shrink machine →automatic jug wrapping →finished product conveying
Pics of 5 Gallon Bottling Line
Automatic Decapping Machine
Automatic Outer Brushing
Automatic Up-jug System
Automatic Washing-Filling-Capping
5 Gallon Jug Dryer
Automatic Jug Wrapping
5 Gallon Jug Palletizer
Reference Sheet Of 5 Gallon Bottling Line Series Equipment:
| Main Machine Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
| Capacity: BPH | 150 | 300 | 450 | 600 |
| Bottle type | 5 Gallon Jug | |||
| Cap type | PE Press Cap & Plastic Screw Cap | |||
| Power (KW) | 4.5 | 7.5 | 9 | 11 |
| Overall size (mm) (L*W*H) | 2600*1650*2250 | 4400*1950*2250 | 4400*2250*2250 | 4400*2550*2250 |
| Weight (KG) | 1000 | 2500 | 3500 | 4500 |
For more details & info. of the 5 Gallon Bottling Line, welcome to enquire now.
