5 Gallon Water Filling Machine
Function: 5 Gallon Jug Washing Filling Capping
Filling Material: Purified Water & Spring Water & Mineral Water & Distilled Water
Model: QGF-450
Capacity: 450BPH
Bottle Type: 5 Gallon Jug with PE Cap
Machine material: SUS 304
Main Machine size (L*W*H): 4400*2250*2250mm
Certificate: CE ISO
Warranty: 3 Years
5 Gallon Water Filling Machine
This QGF Series 5 Gallon Water Filling Machine is mainly used for filling water in 5 Gallon Jug with PE Cap.
The three functions of washing, filling and capping are in one unit. Whole process is automatic.
The height of bottle washing, filling and capping can be adjusted to adapt to different height containers, and it is convenient to replace bottle type.
The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient.
It is the ideal equipment for mid-scale & small-scale water factory.
Process chart:
5 Gallon Jug → automatic decapping machine → automatic outer brushing→ automatic up-jug system → automatic washing-filling-capping → light check → heat shrink machine →automatic jug wrapping →finished product conveying

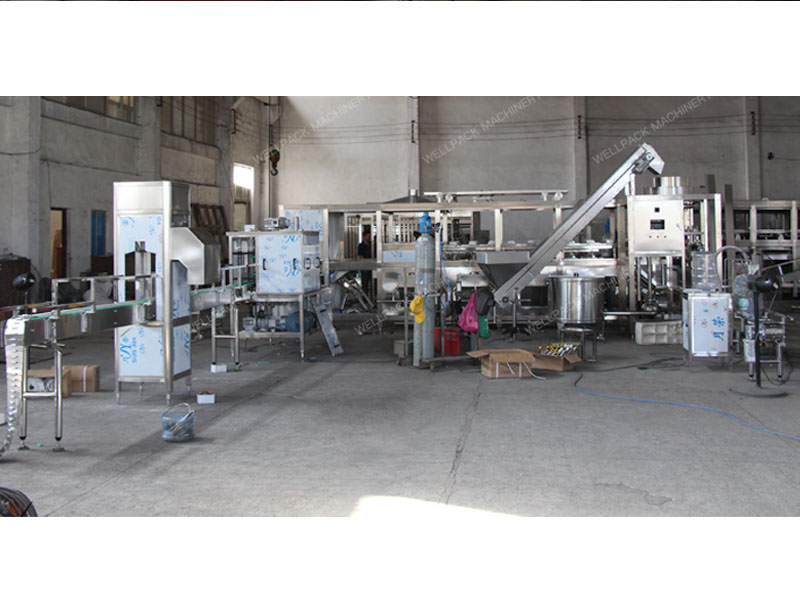

Pics of 5 Gallon Water Filling Machine
Reference Sheet Of 5 Gallon Water Filling Machine Series Equipment:
| Model | QGF-150 | QGF-300 | QGF-450 | QGF-600 |
| Capacity: BPH | 150 | 300 | 450 | 600 |
| Bottle Type | 5 Gallon Jug | |||
| Cap type | PE Press Cap & Plastic Screw Cap | |||
| Power (KW) | 4.5 | 7.5 | 9 | 11 |
| Overall size (mm) (L*W*H) | 2600*1650*2250 | 4400*1950*2250 | 4400*2250*2250 | 4400*2550*2250 |
| Weight (KG) | 1000 | 2500 | 3500 | 4500 |
For more details & info. of the 5 Gallon Water Filling Machine, welcome to enquire now.
