Small Carbonated Beverage Filler

Small Carbonated Beverage Filler

This Small Carbonated Beverage Filler is mainly used for producing gas-contained soft drinks in PET cans.

The functions of filling and sealing are in one unit. Whole process is automatic.

The height of can filling and sealing can be adjusted to adapt to different height cans, and it is convenient to replace can type.

The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low.

It is the ideal equipment for mid-scale & small-scale beverage factory.

Overall View of Small Carbonated Beverage Filler

Inner View of Small Carbonated Beverage Filler

View of Filling Part

Filling Part of Small Carbonated Beverage Filler

1).304/316 Stainless steel high precision filling valves. Liquid level error is within ± 5mm.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valve adopts high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Using isobaric filling method to ensure the accuracy of liquid level.

View of Sealing Part

Can Sealing Part of Small Carbonated Beverage Filler

1).Adopts Taiwan seaming roller and pressing head technology to make sure the quality of sealing.

2).The control system of dropping lid with can and no dropping lid without can reduce lids loss rate.

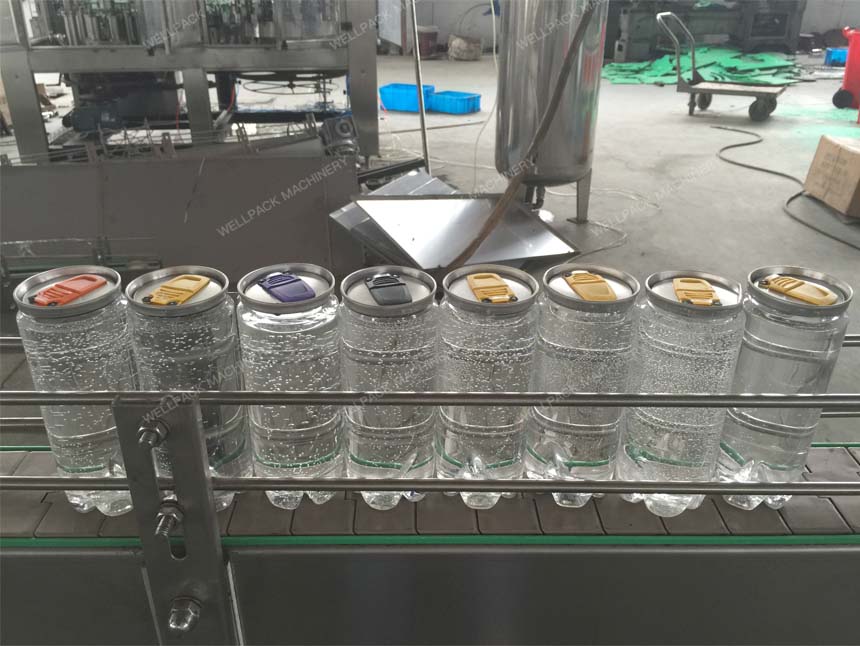

Sealed PET Can Samples

Reference Sheet Of Small Carbonated Beverage Filler Series Equipment:

For more details & info. of the Small Carbonated Beverage Filler, welcome to enquire now.
