Carbonated Drink Filling Machine
Function: Bottle Filling and Capping
Filling Material: Carbonated Drinks
Model: DGF32-6
Capacity: 6000-8000BPH
Packaging Type: 200-2000ml Glass bottle with Crown cap
Machine material: SUS 304/316L
Overall size (L*W*H): 2450*1950*2500mm
Weight: 3500KG
Certificate: CE ISO
Warranty: 3 Years
Carbonated Drink Filling Machine
This DGF Series Carbonated Drink Filling Machine is mainly used for producing gas-contained drinks in glass bottle with crown cap.
The functions of filling and capping are in one unit. Whole process is automatic.
The height of bottle filling and capping can be adjusted to adapt to different height bottles, and it is convenient to replace bottle type.
The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low.
It is the ideal equipment for mid-scale & small-scale beverage factory.

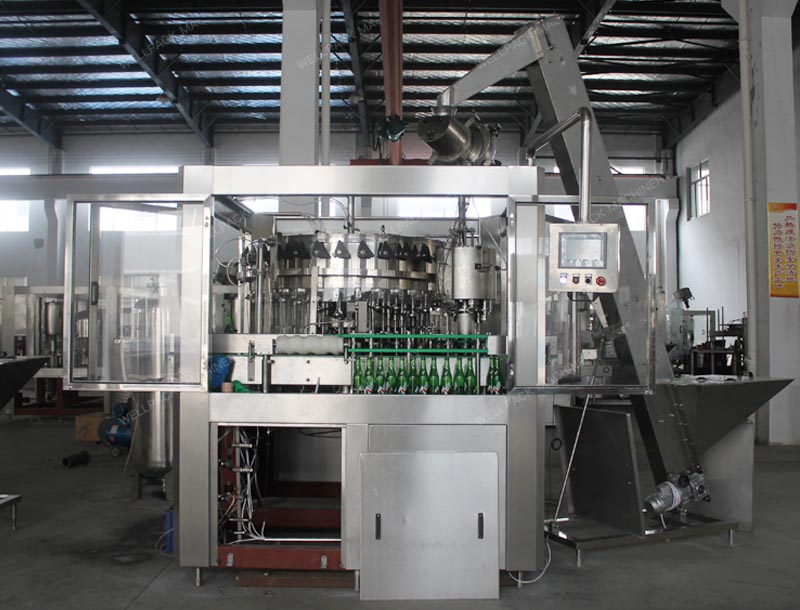

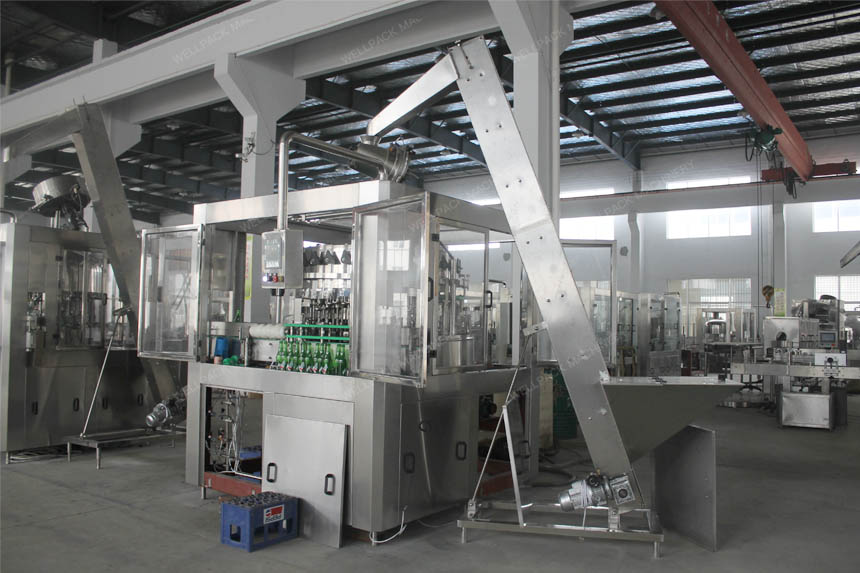

Overall View of Carbonated Drink Filling Machine

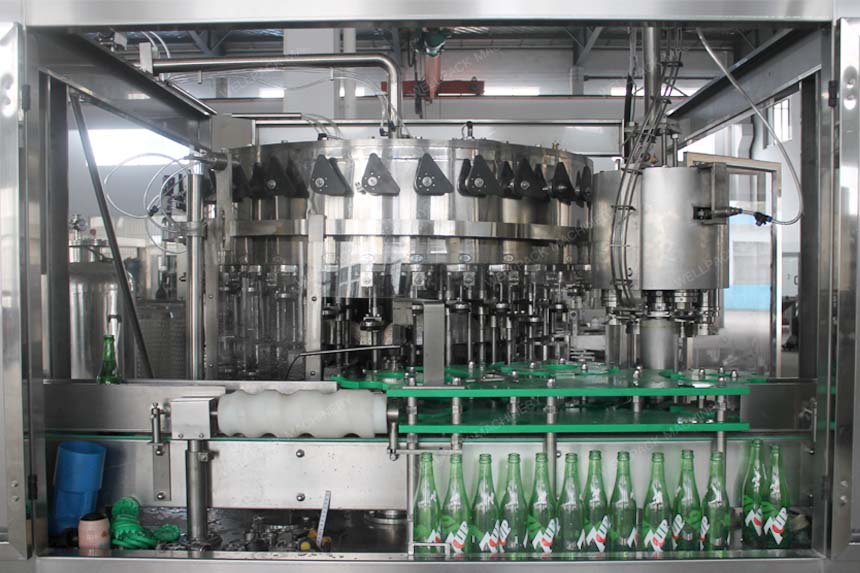

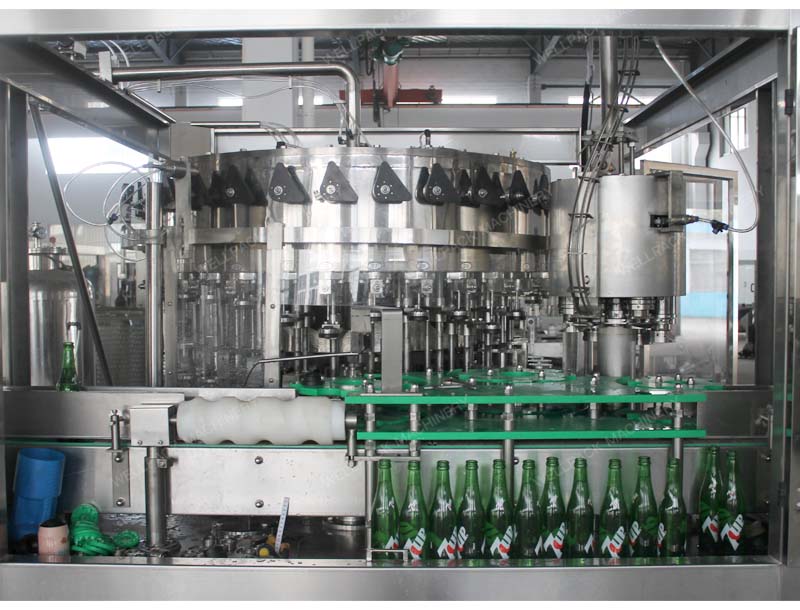

Detail View of Carbonated Drink Filling Machine

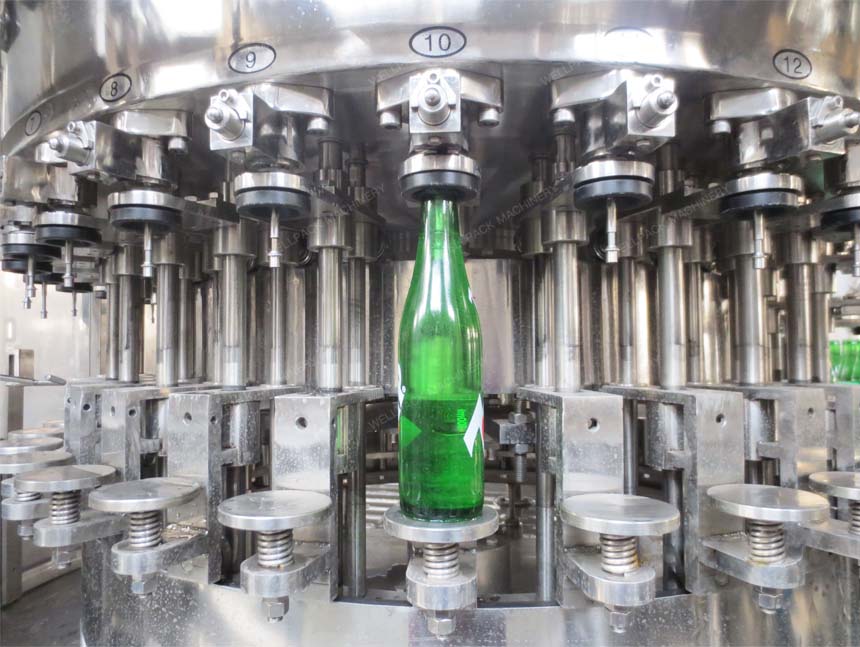

View of Filling Part

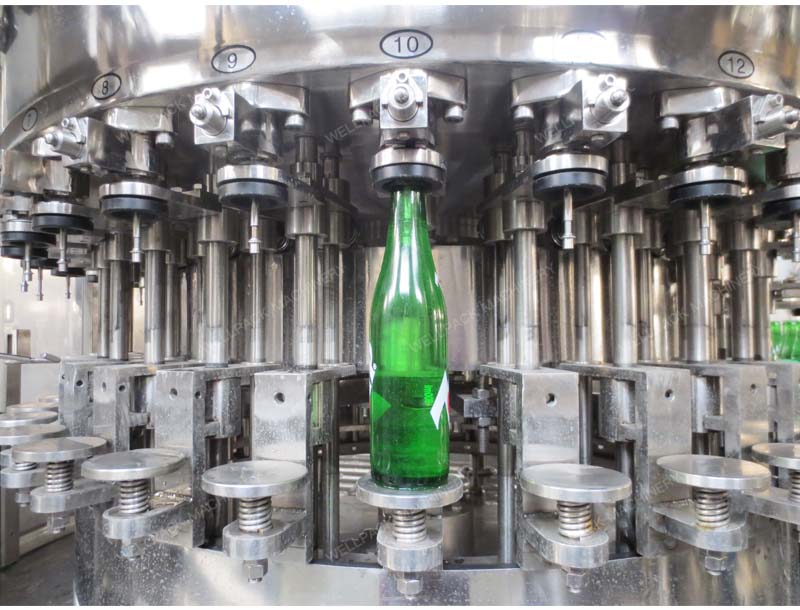

Filling Part of Carbonated Drink Filling Machine
1).304/316 Stainless steel high precision filling valves. Liquid level error is within ± 5mm.
2).304/316 Stainless steel fine polish filling tank without death corner.
3).Filling valve adopts high filling speed and mass flow rate valve which control liquid level accurately without loss.
4).Liquid level in filling tank is controlled via float-ball.
5).Using isobaric filling method to ensure the accuracy of liquid level.

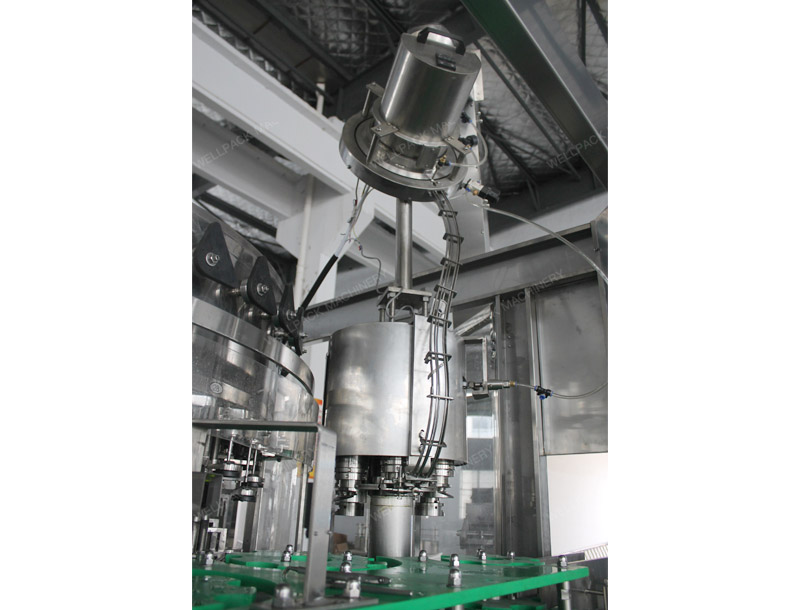

View of Capping Part

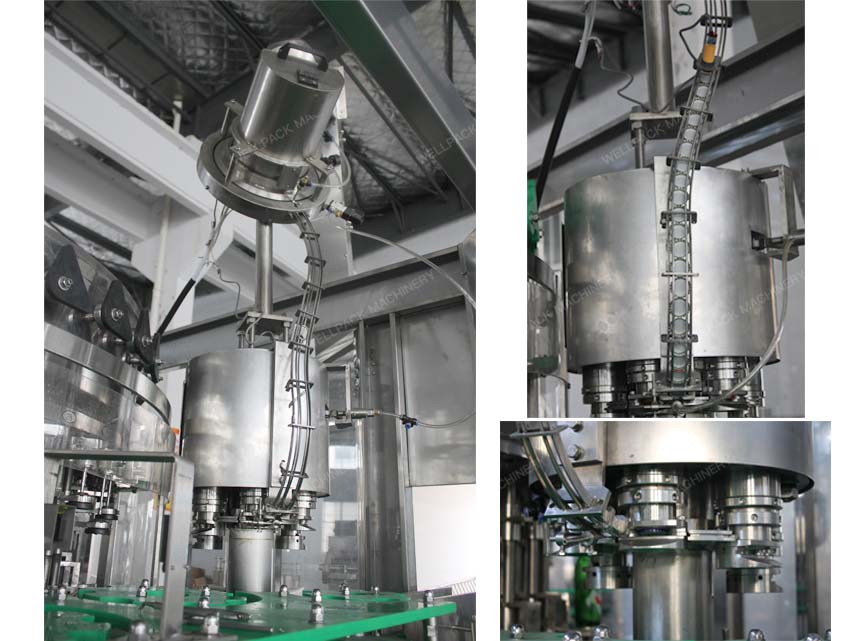

Capping Part of Carbonated Drink Filling Machine
1).The capping machine includes capping head, cap unscrambler and cap tunnel.
2).The hopper is equipped with photoelectric switch to control the cap feeding automatically.
3).No bottle no capping. Automatic stop when lack of bottle.
4).The capping is continuous rolling type. The lower part of the capping head has a centering cover, which makes the exit of bottle more smoothly.
5).Capping effect is stable and reliable, defective rate ≤0.2%
Reference Sheet Of Carbonated Drink Filling Machine Series Equipment:
Model | DGF18-6 | DGF24-6 | DGF32-8 | DGF40-10 |
Filling/Capping heads | 18-6 | 24-6 | 32-8 | 40-10 |
Capacity: BPH (500ml bottle) | 3000-4000 | 4000-6000 | 6000-8000 | 8000-12000 |
Bottle shape | Round & Square & Flat & Special shaped bottle | |||
Bottle size | Diameter:50-100mm; Height:100-340mm | |||
Cap type | Crown cap | |||
Power (KW) | 3.5 | 4.5 | 5.2 | 6.5 |
Overall size (mm) (L*W*H) | 2100*1650*2500 | 2250*1750*2500 | 2800*2150*2500 | 3200*2300*2500 |
Weight (KG) | 2200 | 2800 | 4000 | 4500 |
For more details & info. of the Carbonated Drink Filling Machine, welcome to enquire now.
