Soda Filling Machine

Soda Filling Machine

This DCGX Series Soda Filling Machine is mainly used for filling soda and other carbonated drinks in glass bottle with aluminum screw cap.

The three functions of washing, filling and capping are in one unit. Whole process is automatic.

The height of bottle washing, filling and capping can be adjusted to adapt to different height bottles, and it is convenient to replace bottle type.

The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low.

It is the ideal equipment for mid-scale & small-scale beverage factory.

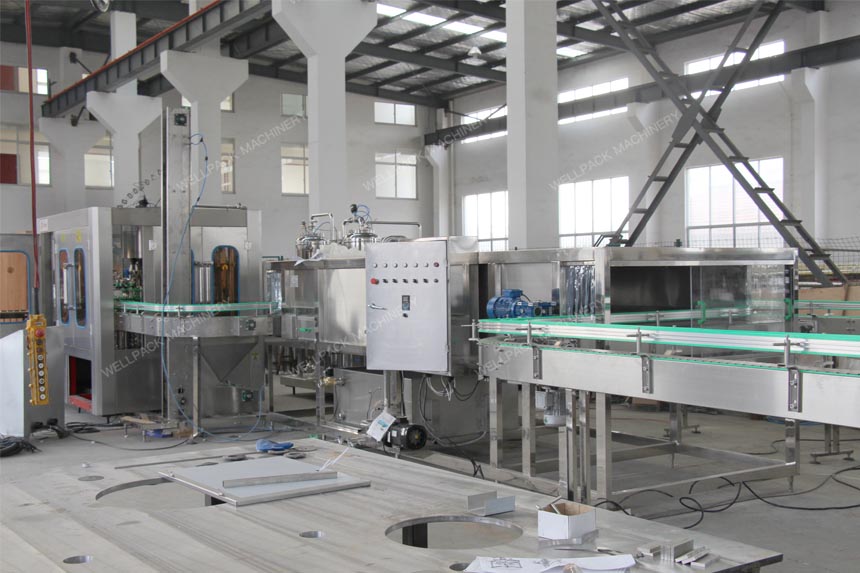

Overall View of Soda Filling Line

Empty Glass Bottle Input Conveyor

Front View of Soda Filling Machine

Inner View of Soda Filling Machine

View of Washing Part

Washing Part of Soda Filling Machine

1).Enhanced food safety: Stainless steel 304/316L for all components in contact with liquid.

2).Each flushing head is equipped with a self-made stainless steel control water valve, which greatly saves water and reduces the residual water in the bottle.

View of Filling Part

Filling Part of Soda Filling Machine

1).304/316 Stainless steel high precision filling valves. Liquid level error is within ± 5mm.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valve adopts high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Using isobaric filling method to ensure the accuracy of liquid level.

View of Capping Part

Capping Part of Soda Filling Machine:

1. The capping machine includes capping head,cap unscrambler and cap tunnel.

2. The hopper is equipped with photoelectric switch to control the cap feeding automatically.

3. Capping system is composed of thread knife, pressure spring, capping head, etc.

4. No bottle no capping. Automatic stop when lack of bottle.

5. Capping effect: Excellent sealing quality, thread clear and uniform, cap appearance without abrasion.

6. Capping is stable and reliable, defective rate ≤0.2%

Cap Elevator

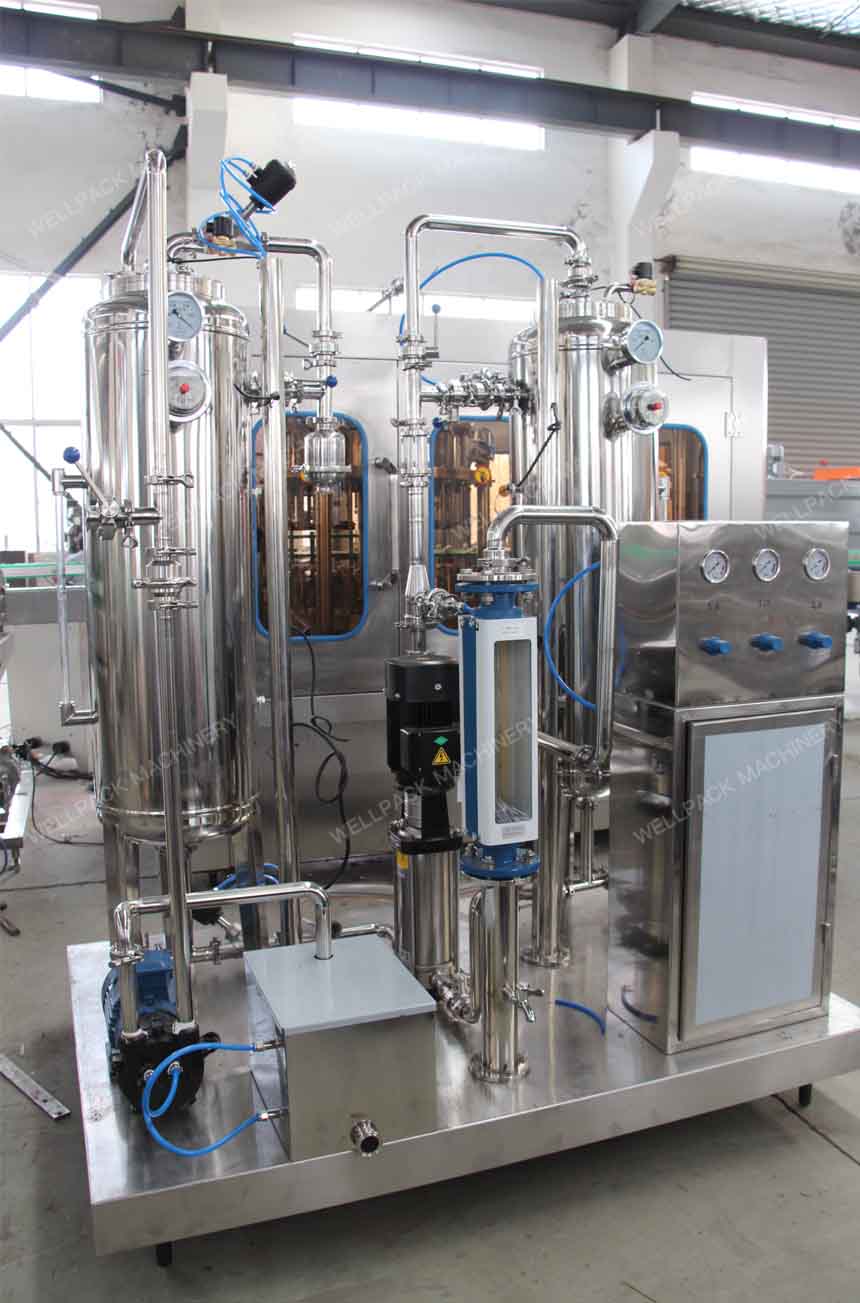

CO₂ Mixing Machine

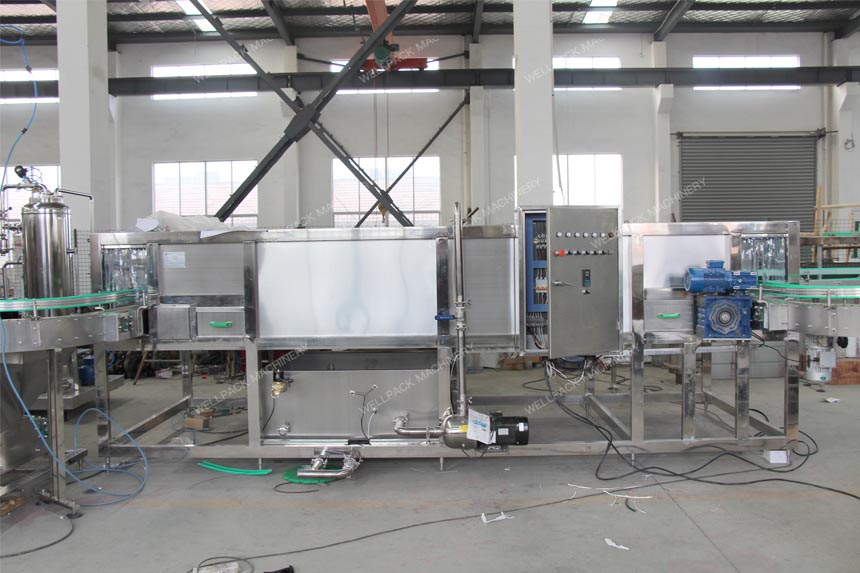

Glass Bottle Spray Warming Machine

Reference Sheet Of Soda Filling Machine Series Equipment:

For more details & info. of the Soda Filling Machine, welcome to enquire now.
