Crown Capper For Beer Bottles
Function: Capping Glass bottle with Crown cap
Model: YG-6 (Capping head:6)
Capacity: 3000-6000BPH
Glass bottle size: 200-2000ml
Machine material: SUS 304
Overall size (L*W*H): 1150*850*2350mm
Weight: 1000KG
Certificate: CE ISO
Warranty: 3 Years
Crown Capper For Beer Bottles
This Crown Capper For Beer Bottles is used for capping glass bottle with crown cap. It's widely used in beer factory.
This machine is equipped with the bottle inlet screw arbor and the bottle inlet & outlet dial wheel.
The bottle caps are automatically arranged into the cap sliding rail via cap unscrambler, then enters into the capping head with the assist of compressed air.With the rotary movement of the cylindrical cam and the spring cylinder device, complete the capping.
The height of the capping machine can be adjusted to adapt to different height bottles, and it is convenient to replace bottle type.
The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low (≤0.2%).
It is the ideal equipment for mid-scale & small-scale beer factory.

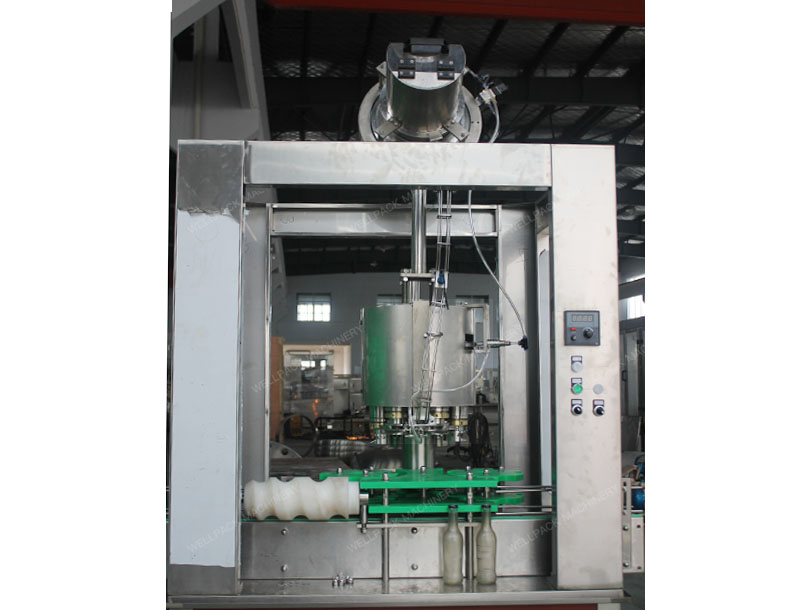

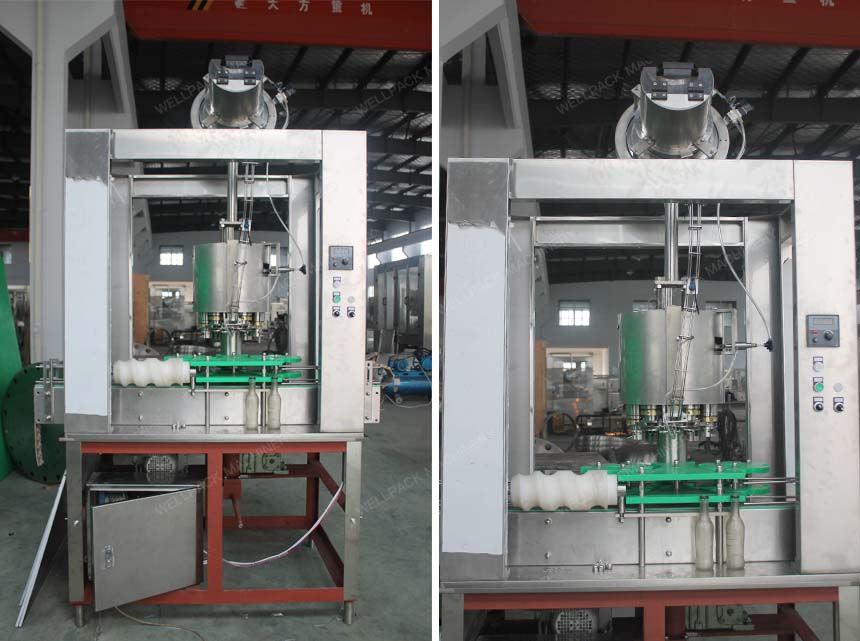

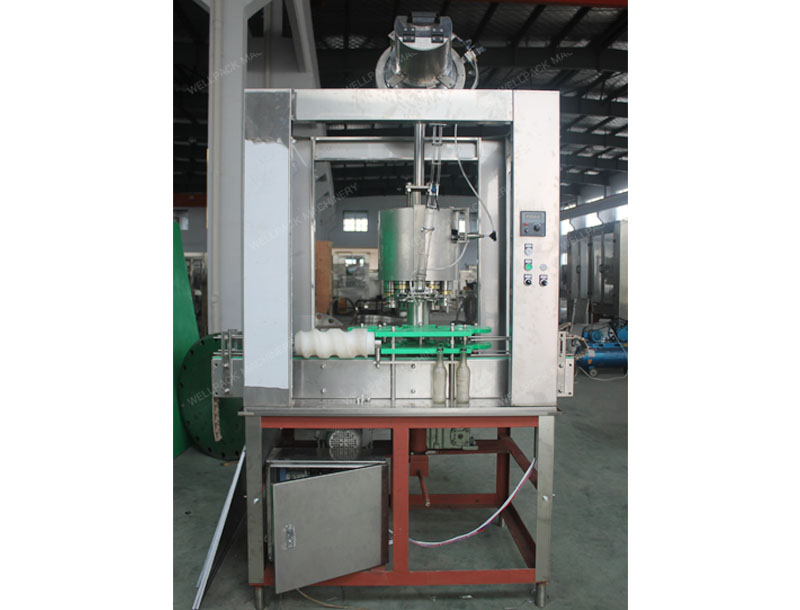

Overall View of Crown Capper For Beer Bottles
Detail View of Crown Capper For Beer Bottles

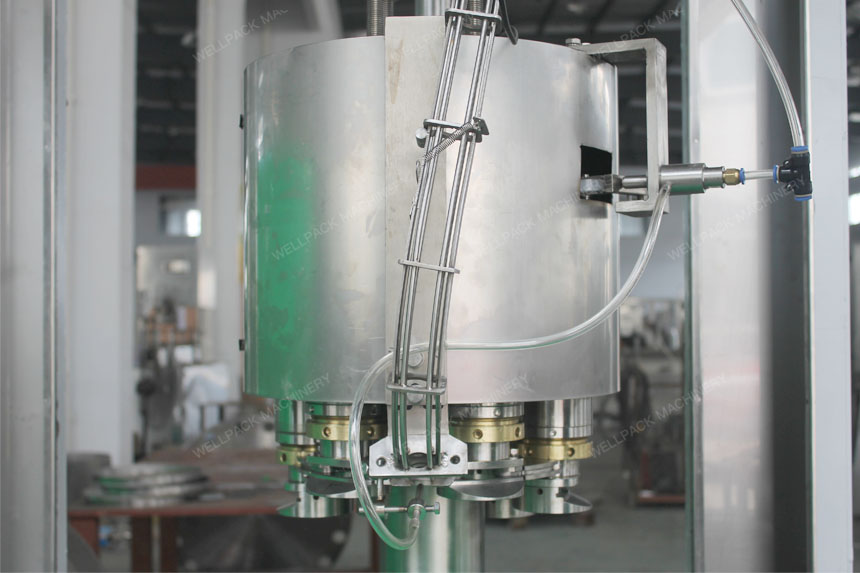

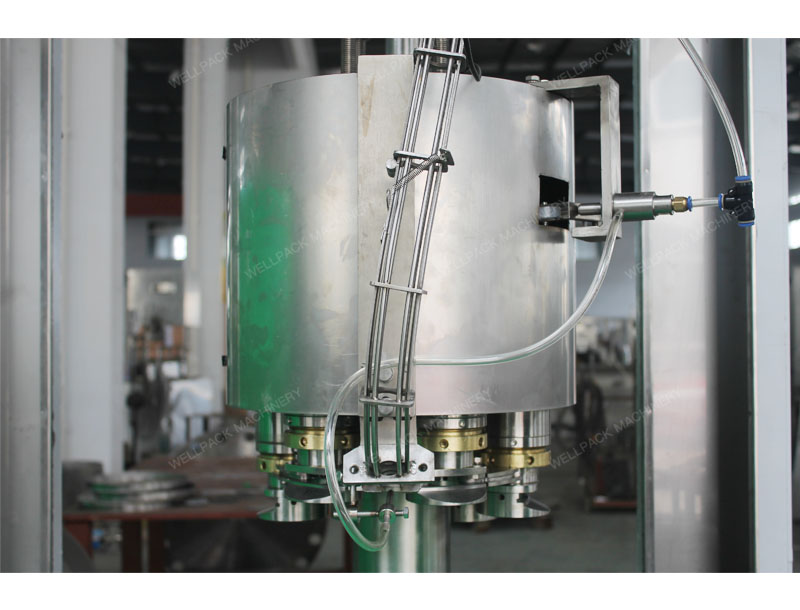

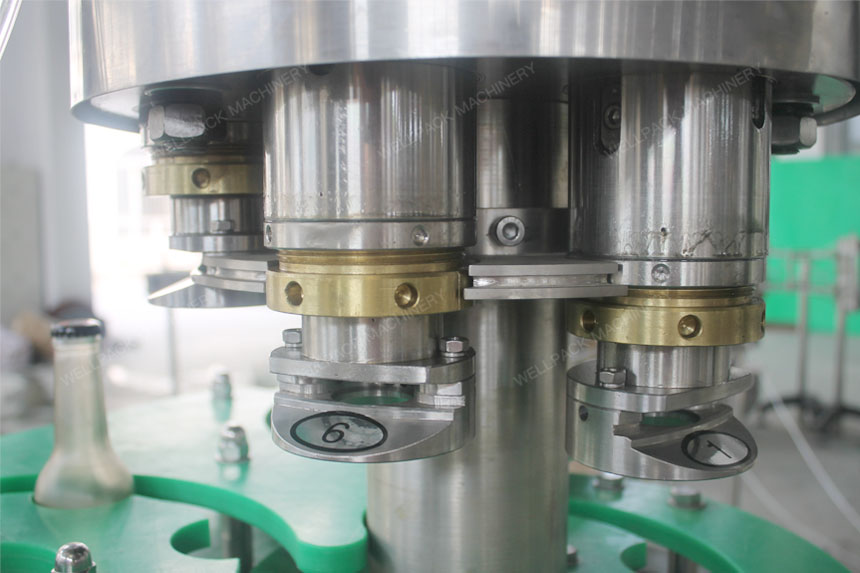

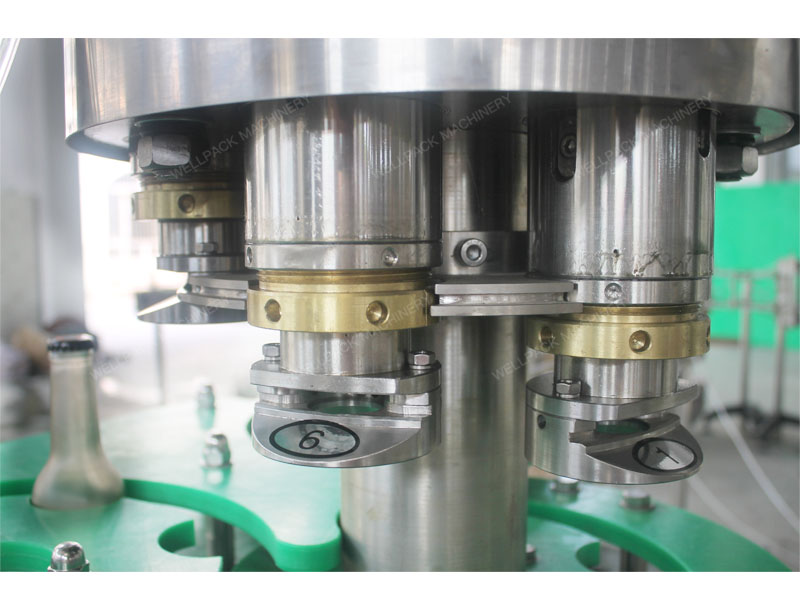

Capping Head of Crown Capper For Beer Bottles
Reference Sheet Of Crown Capper For Beer Bottles Series Equipment:
Model | YG-1 | YG-6 | YG-8 | YG-10 | YG-12 |
Capping heads | 1 | 6 | 8 | 10 | 12 |
Capacity: BPH | 1000-2400 | 3000-6000 | 5000-10000 | 8000-12000 | 10000-16000 |
Glass bottle shape | Round & Square & Flat & Special shaped bottle | ||||
Total power (KW) | 1 | 1 | 1 | 1 | 1 |
Overall size (mm) | 930*700*2100 | 1150*850*2350 | 1200*930*2350 | 1350*1100*2350 | 1500*1280*2350 |
Weight (KG) | 500 | 1000 | 1200 | 1350 | 1450 |
For more details & info. of the Crown Capper For Beer Bottles, welcome to enquire now.
