Ropp Capper
Function: Capping glass bottle with aluminum ropp cap
Model: XG-1 (Capping head:1)
Capacity: 1000-2400BPH
Glass bottle height: 120mm-320mm
Glass bottle diameter: Φ50mm-Φ100mm
Glass bottle mouth diameter: Φ22mm-Φ32mm
Overall size (L*W*H): 930*700*2100mm
Weight: 500KG
Warranty: 3 Years
Ropp Capper
This Ropp Capper is used for capping glass bottle with aluminum ropp cap.
It's designed on the basis of absorbing domestic and foreign advanced technology.
It has such advantages as advanced construction, stable working, convenient operation and repair & maintenance, transducer control as well as high production efficiency.
It is the ideal equipment for mid-scale & small-scale beverage, wine, edible oil etc. factory.
Front View and Back View of Ropp Capper
Detail View of Ropp Capper
Capping Head of Ropp Capper
Main structure and performance of the screw capper:
1. Transmission system includes motor, spindle, cam, screw arbor;
2. Automatic cap feeding system includes unscrambler and cap sliding track;
3. Capping system is composed of thread knife, pressure spring, capping head, etc.
4. The main motor adopts stepless speed regulation.
5. Loss rate of cap and glass bottle: less than 0.1%.
6. Capping effect: Excellent sealing quality, thread clear and uniform, cap appearance without abrasion.

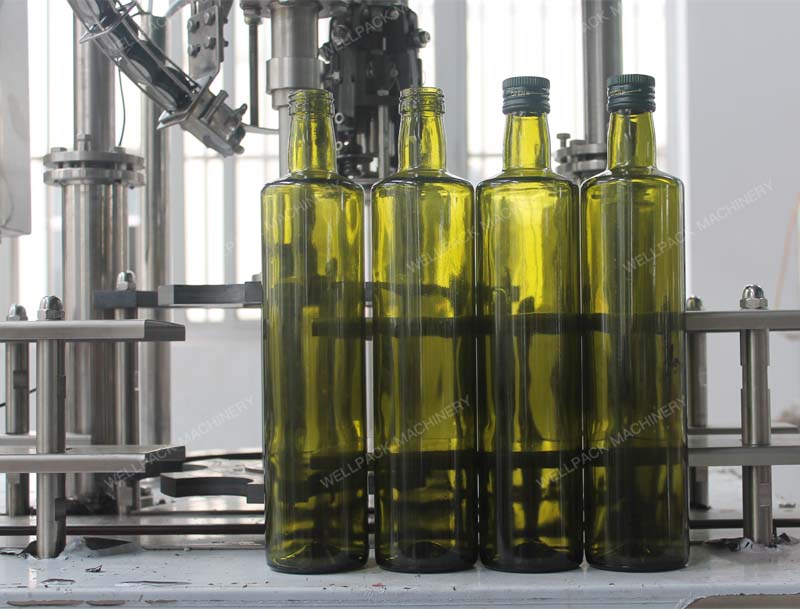

Glass Bottle with Aluminum ROPP Cap Sample
Reference Sheet Of Ropp Capper Series Equipment:
Model | XG-1 | XG-6 | XG-8 | XG-10 | XG-12 |
Capping heads | 1 | 6 | 8 | 10 | 12 |
Capacity: BPH | 1000-2400 | 3000-6000 | 5000-10000 | 8000-12000 | 10000-16000 |
Glass bottle shape | Round & Square & Flat & Special shaped bottle | ||||
Total power (KW) | 1 | 1 | 1 | 1 | 1 |
Overall size (mm) | 930*700*2100 | 1180*860*2500 | 1200*930*2500 | 1450*1200*2500 | 1800*1280*2500 |
Weight (KG) | 500 | 800 | 1000 | 1200 | 1500 |
For more details & info. of the Ropp Capper, welcome to enquire now.
