Jam Filling Machine
Function: PP Bottle & Glass Jar Filling
Filling Material: Jam/Tomato Paste/Chili Sauce/ketchup
Packaging Type:200-2000g Bottle & Jar
Machine material: SUS 304/316L
Overall size (L*W*H): 1450*1350*2150mm
Certificate: CE ISO
Warranty: 1 Year
Jam Filling Machine
This Jam Filling Machine is used for filling all kinds of sauces such as ketchup, chili sauce, all kinds of fruit jam, fruit paste and other viscous materials in PP Bottle & Glass Jar. It's designed on the basis of absorbing domestic and foreign advanced technology. It has such advantages as advanced construction, stable working, convenient operation and repair & maintenance as well as high production efficiency. It is the ideal equipment for mid-scale & small-scale Jam factory.

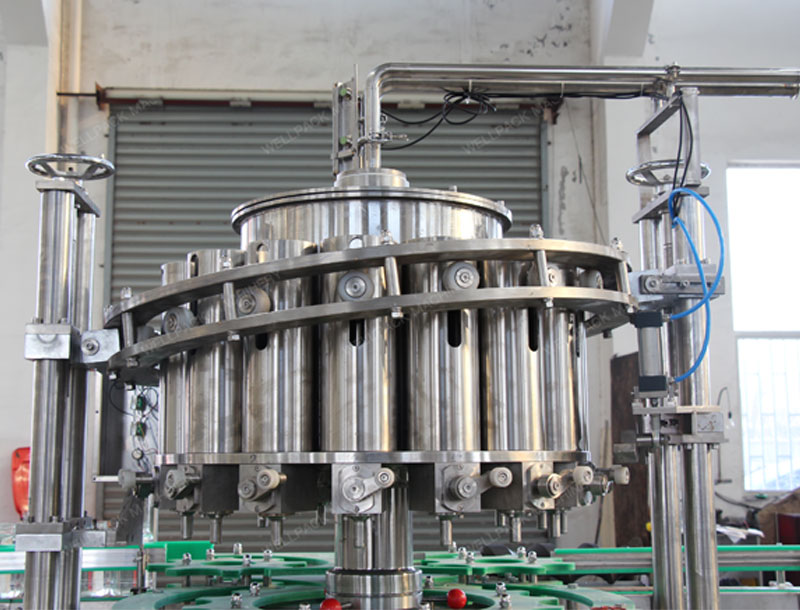

Overall View of Jam Filling Machine
Filling Part of Jam Filling Machine
1).304/316 Stainless steel fine polish filling tank without death corner.
2).304/316 Stainless steel filling valves (Parts connect with material are all made of 304/316 Stainless steel).
3).The piston and piston barrel after the treatment of top technology, cooperate accurately, durable and wearable.
4).Equipped with material stirring system, three points liquid level control, fills precisely, and suits for cold and hot filling.
5).Specialize designed jam filling head with vacuum suction system guarantees no drop or leakage during production.
6).Piston barrel quantitative filling principle.
7).Automatic speed adjustment via frequency conversion, machine works stable.
8).Bottle in and out protection.
9).Filling with bottles and no filling without bottles.

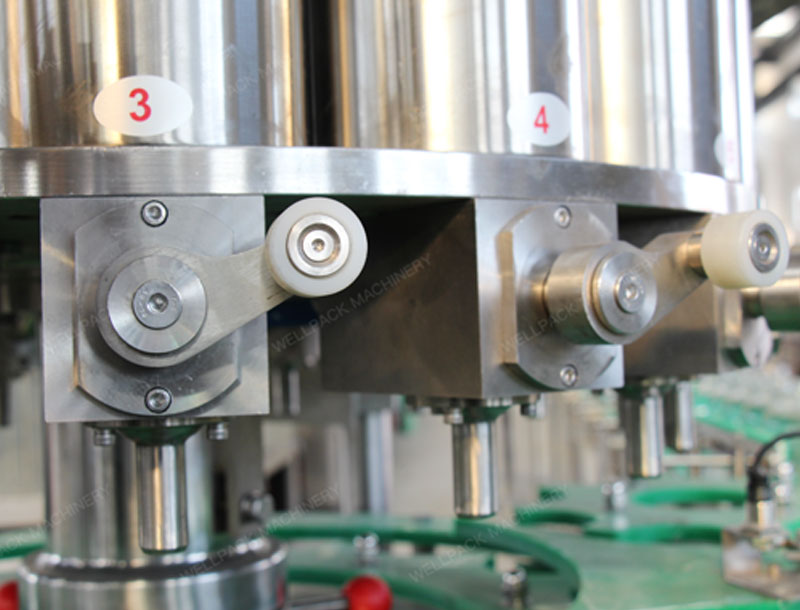

Filling Head of Jam Filling Machine
Jam Filling Machine Testing In Factory Before Delivery

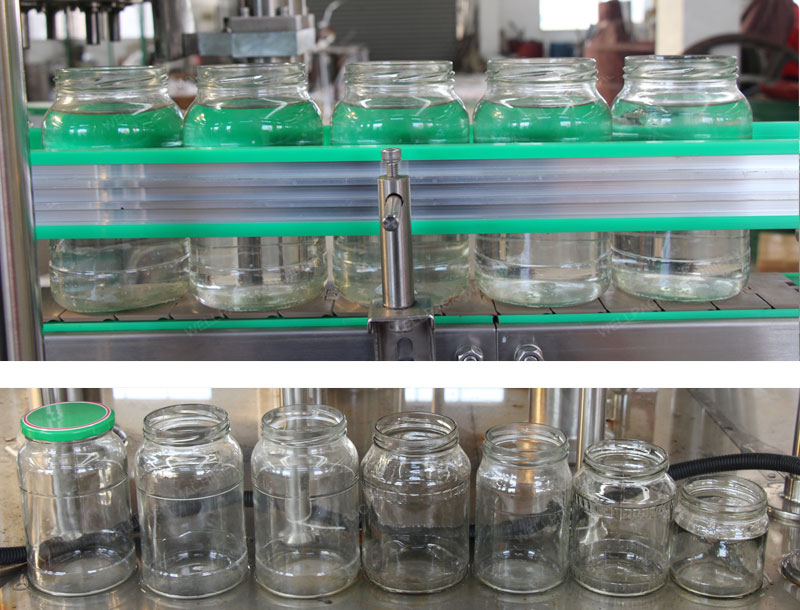

Glass Jar Samples
The Jam Filling Machine can be connected with The Lug Metal Cap Capping machine
Reference Sheet Of Jam Filling Machine Series Equipment :
|Capacity: BPH (500g bottle)||3000-4000||4000-6000||6000-8000||8000-10000|
|Bottle shape||Round & Square & Special shape|
|Bottle size||Diameter:50-110mm; Height:50-240mm|
|Cap type||Three or four lug metal cap|
|Overall size (mm)||1220*1250*1950||1420*1450*1950||1650*1680*1950||1850*1880*1950|
For more details & info. of the Jam Filling Machine,welcome to enquire now!
