Beverage Canning Line

Beverage Canning Line

This beverage canning line is used for filling Non-gas Contained Beverage as Juice/Tea in tin cans and sealing cans.

It's designed on the basis of absorbing domestic and foreign advanced technology.

It has such advantages as advanced construction, stable working, convenient operation and repair & maintenance, transducer control as well as high production efficiency.

It is the ideal equipment for mid-scale & small-scale beverage factory.

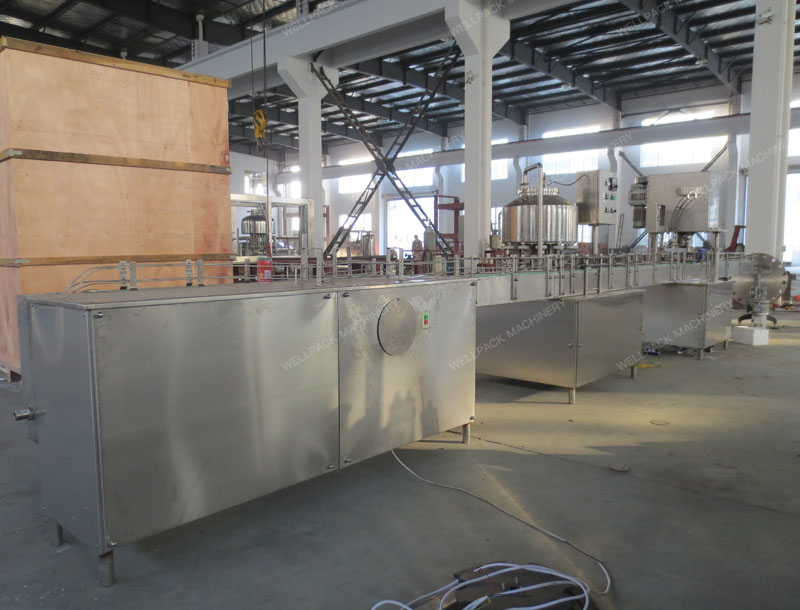

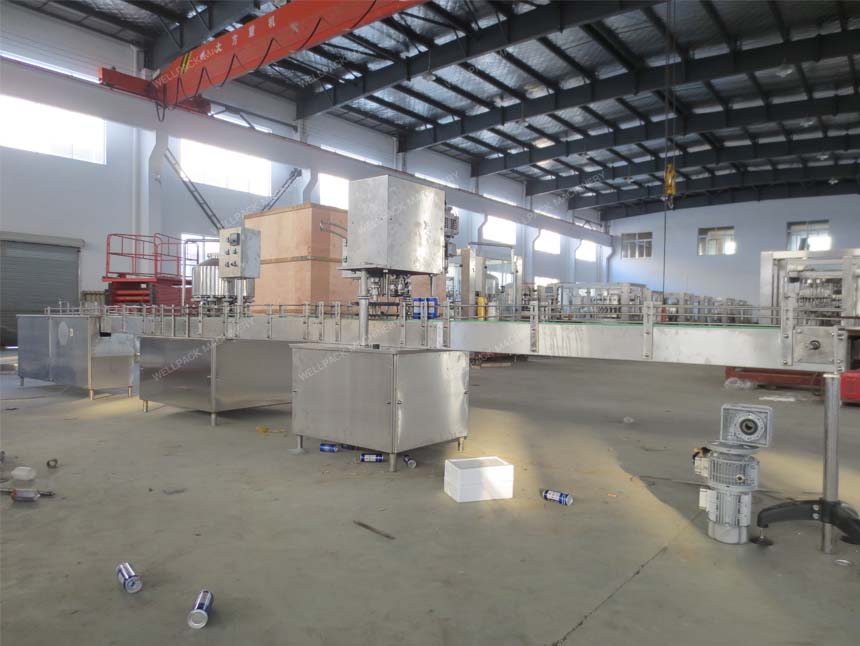

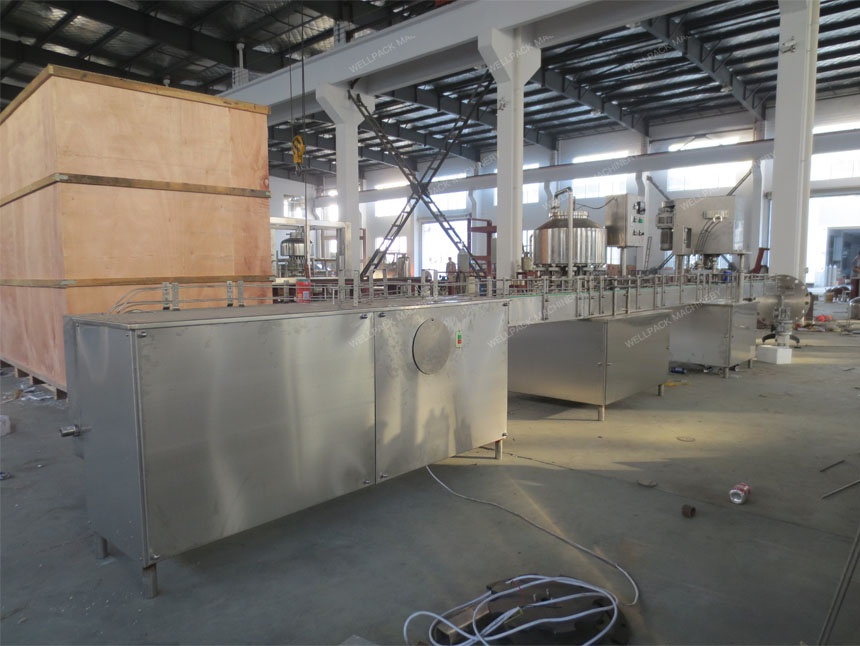

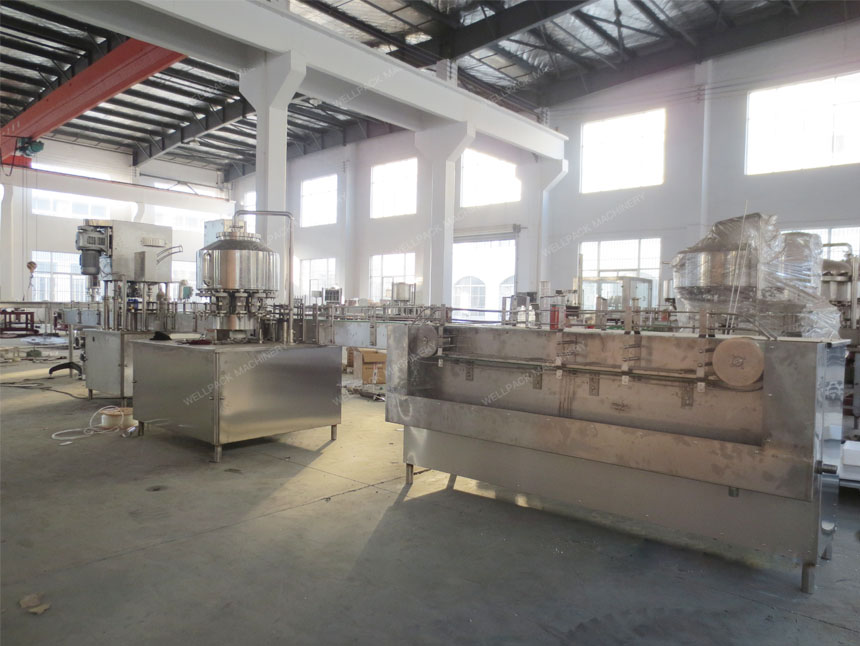

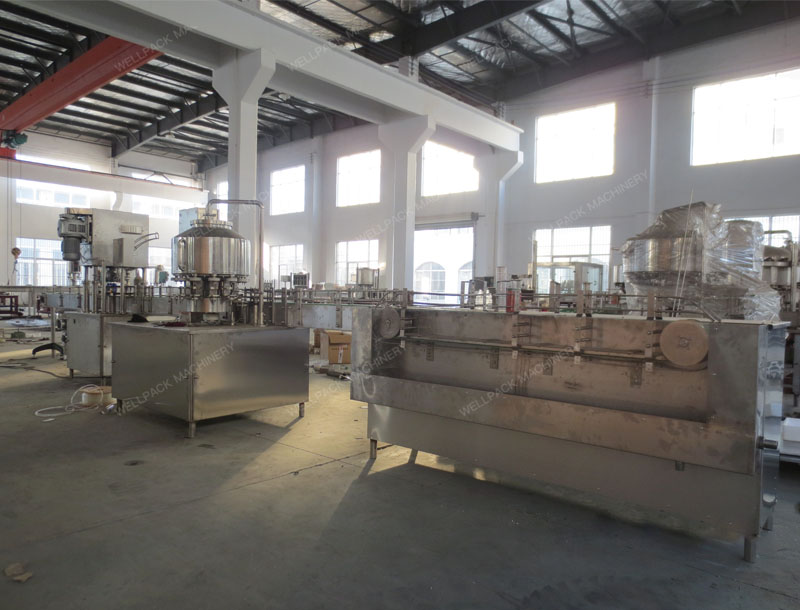

Overall View of Beverage Canning Line

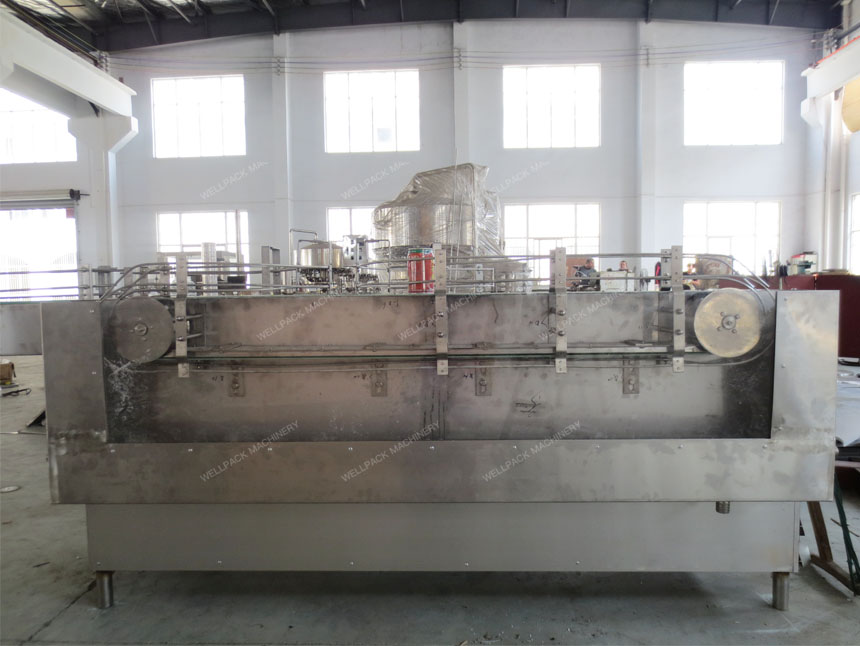

View of Tin Can Rinser

This Tin Can Rinser Machine mainly consists of box body, slide rail and spray flushing device.

The box body is composed of four segments:

1).At the first segment, invert the empty tin cans when passing through the slide rail - The empty tin cans are held on the tape by a magnetic guide at the bottom of the tape;

2).At the second segment, the spraying device constantly sprays sterile water and rinsing the empty tin cans;

3).At the third segment, the empty tin cans drain in the slide rail;

4).At the fourth segment, empty tin cans turn back to the can mouth upward via the slide rail, then enter into the filling machine via conveyor belt.

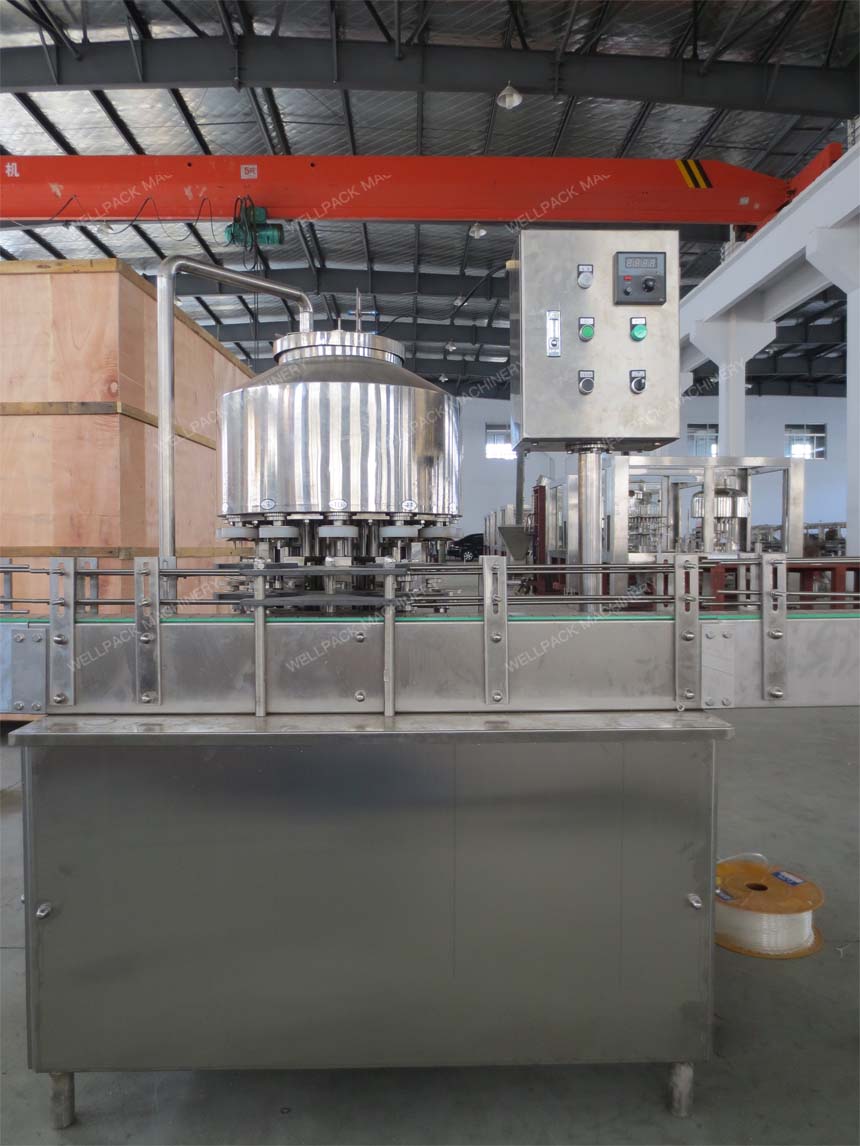

View of Filling Machine

Filling Part of Beverage Canning Line

1).304/316 Stainless steel fine polish filling tank without death corner.

2).304/316 Stainless steel high-accuracy mechanical filling valves.

3). Normal pressure filling principle.

4).Filling with cans and no filling without cans.

5).High accuracy of liquid level

6).Liquid level in filling tank is controlled via float-ball.

7).The height of the filling tank can be adjusted to fit the different height of cans.

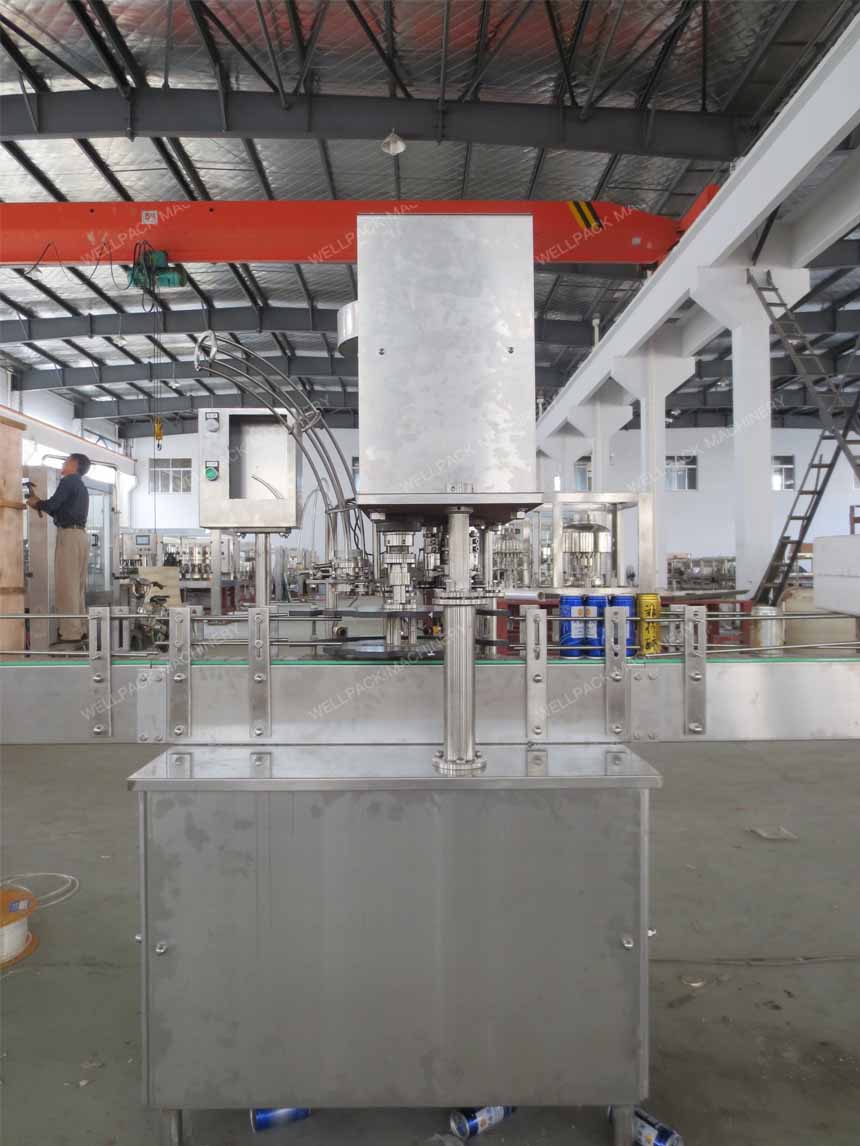

View of Sealing Machine

Can Sealing Part of Beverage Canning Line:

1).Adopts Taiwan sealing roller and pressure head technology to make sure the quality of sealing.

2).The control system of dropping lid with can and no dropping lid without can reduce lids loss rate.

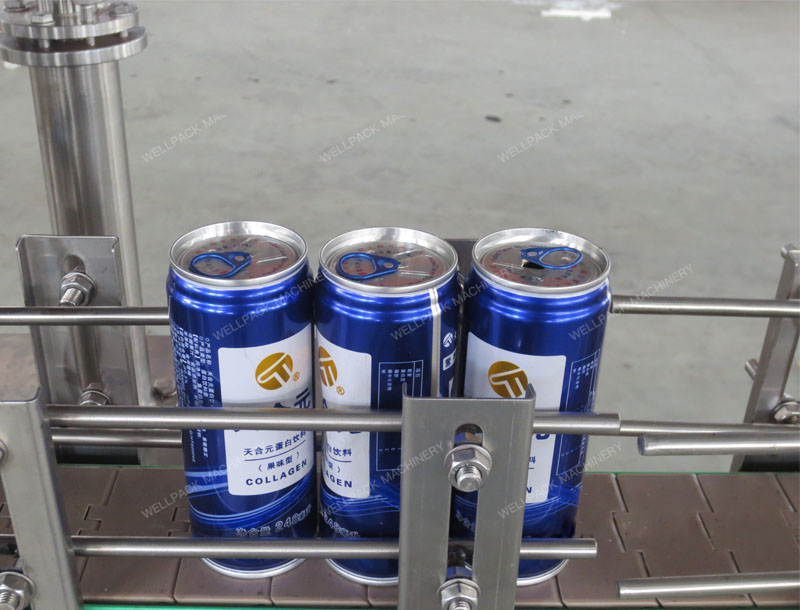

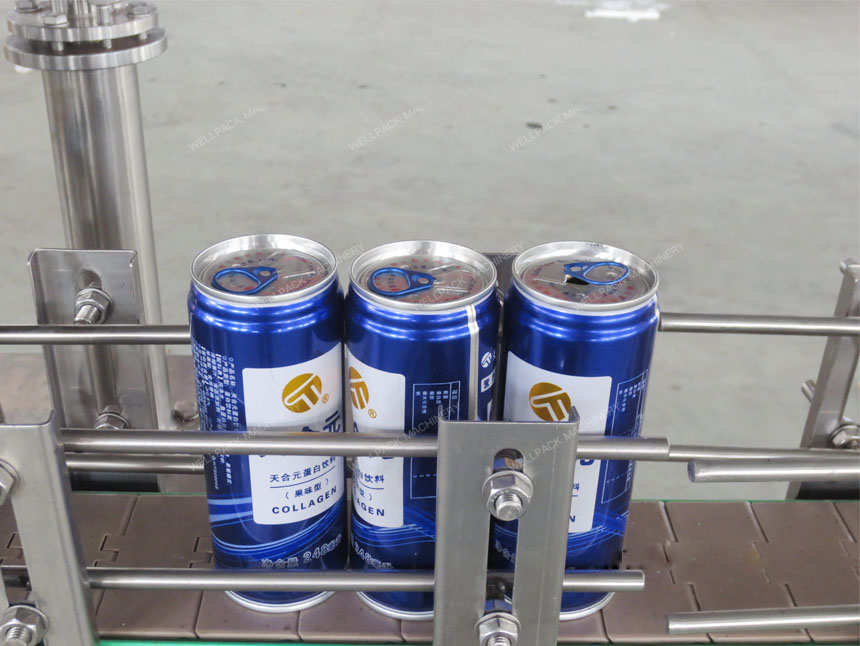

View of Sealed Can Samples

Reference Sheet Of Beverage Canning Line Series Equipment :

For more details & info. of the Beverage Canning Line,welcome to enquire now.
