Tin Can Canning Equipment
Function: Tin Can Filling Sealing 2-in-1
Filling Material: Non-gas Contained Drinks as Juice/Tea
Model: GCF18-6
Capacity: 3000-6000CPH
Packaging Type: 50-2000ml Tin Can
Machine material: SUS 304/316L
Overall size (L*W*H): 2100*1650*2200mm
Weight: 2000KG
Certificate: CE ISO
Warranty: 3 Years
Tin Can Canning Equipment
This Filling and Sealing 2-in-1 type tin can canning equipment is used for filling Non-gas Contained Drinks as Juice/Tea in tin cans and sealing cans.
It's designed on the basis of absorbing domestic and foreign advanced technology.
It has such advantages as advanced construction, stable working, convenient operation and repair & maintenance, transducer control as well as high production efficiency.
It is the ideal equipment for mid-scale & small-scale beverage factory.
Overall View of Tin Can Canning Equipment

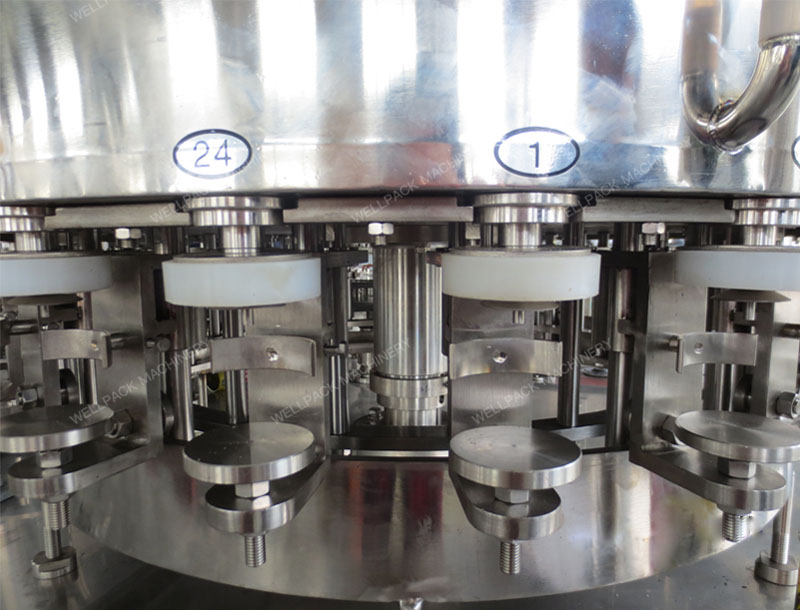

Filling Heads of Tin Can Canning Equipment
Filling Part of Tin Can Canning Equipment:
1).304/316 Stainless steel fine polish filling tank without death corner.
2).304/316 Stainless steel high-accuracy mechanical filling valves.
3). Normal pressure filling principle.
4).Filling with cans and no filling without cans.
5).High accuracy of liquid level
6).Liquid level in filling tank is controlled via float-ball.
7).The height of the filling tank can be adjusted to fit the different height of cans.
Sealing Heads of Tin Can Canning Equipment
Can Sealing Part of Tin Can Canning Equipment:
1).Adopts Taiwan sealing roller and pressure head technology to make sure the quality of sealing.
2).The control system of dropping lid with can and no dropping lid without can reduce lids loss rate.
Reference Sheet Of Tin Can Canning Series Equipment:
Model | GCF12-1 | GCF18-6 | GCF24-6 | GCF32-8 | GCF40-8 |
Filling/Sealing heads | 12-1 | 18-6 | 24-6 | 32-8 | 40-8 |
Capacity: CPH | 1000-2400 | 2000-6000 | 4000-8000 | 8000-12000 | 12000-15000 |
Filling precision | ≤±5mm (Measure after the liquid level stable) | ||||
Power (KW) | 1.7 | 3.5 | 4.5 | 5.2 | 6.5 |
Overall size (mm) | 1600*1300*2200 | 2100*1650*2200 | 2350*1750*2200 | 2800*2200*2200 | 3200*2400*2350 |
Weight (KG) | 1500 | 2000 | 2800 | 4000 | 4500 |
For more details & info. of the Tin Can Canning Equipment,welcome to enquire now.
