Tin Canning Machine

Share:

Function: Tin Can Rinsing Filling Sealing 3-in-1
Filling Material: Non-gas Contained Beverage as Juice/Tea
Model: GCF18-18-6
Capacity: 3000-6000CPH
Packaging Type: 50-2000ml Tin Can
Machine material: SUS 304/316L
Overall size (L*W*H): 2650*1850*2200mm
Weight: 2500KG
Certificate: CE ISO
Warranty: 3 Years

Product Description

Tin Canning Machine

This Rinsing Filling and Sealing 3-in-1 type tin canning machine is used for filling Non-gas Contained Beverage as Juice/Tea in tin cans and sealing cans.

It's designed on the basis of absorbing domestic and foreign advanced technology.

It has such advantages as advanced construction, stable working, convenient operation and repair & maintenance, transducer control as well as high production efficiency.

It is the ideal equipment for mid-scale & small-scale beverage factory.


Overall View of Tin Canning Machine

Tin Canning Machine


Rinsing Part of Tin Canning Machine

Tin Canning Machine

Front View of Tin Canning Machine

Tin Canning Machine

Back View of Tin Canning Machine

Tin Canning Machine

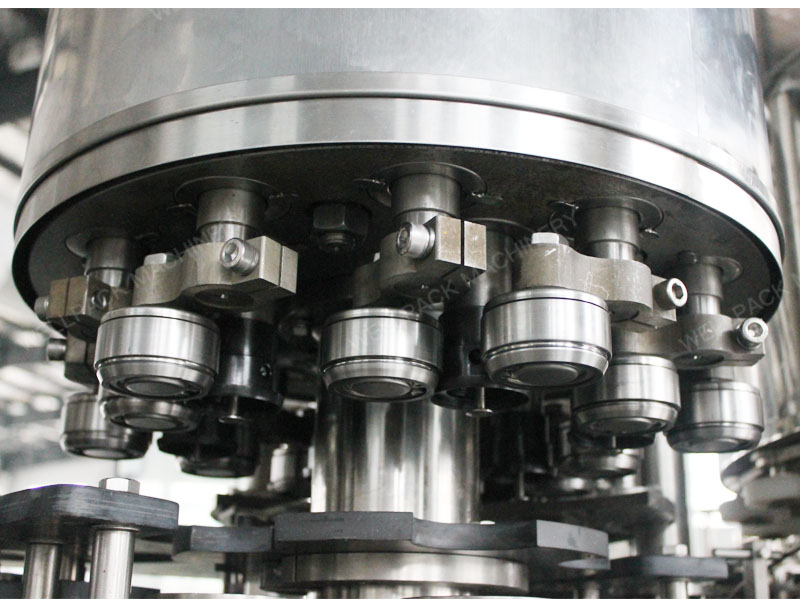

Filling Heads of Tin Canning Machine

Tin Canning Machine

Filling Part of Tin Canning Machine

1).304/316 Stainless steel fine polish filling tank without death corner.

2).304/316 Stainless steel high-accuracy mechanical filling valves.

3). Normal pressure filling principle.

4).Filling with cans and no filling without cans.

5).High accuracy of liquid level

6).Liquid level in filling tank is controlled via float-ball.

7).The height of the filling tank can be adjusted to fit the different height of cans.


Sealing Heads of Tin Canning Machine

Tin Canning Machine

Can Sealing Part of Tin Canning Machine:

1).Adopts Taiwan sealing roller and pressure head technology to make sure the quality of sealing.

2).The control system of dropping lid with can and no dropping lid without can reduce lids loss rate.


Sealed Tin Can Samples

Tin Canning Machine

Reference Sheet Of Tin Canning Machine Series Equipment:

ModelGCF18-18-6GCF24-24-6GCF32-32-8GCF40-40-8
Rinsing/Filling/Sealing heads18-18-624-24-632-32-840-40-8
Capacity: CPH3000-60005000-80008000-1200012000-15000
Filling precision≤±5mm (Measure after the liquid level stable)
Power (KW)3.54.55.26.5
Overall size (mm)2650*1850*22003050*2050*22003500*2250*22004180*2460*2350
Weight (KG)2500350045005500


For more details & info. of the Tin Canning Machine, welcome to enquire now.
