Juice Filling Line

Juice Filling Line

This HCGX Series Juice Filling Line is mainly used for all kinds of juice such as blueberry juice, orange juice, mango juice, pineapple juice etc. Non-gas contained drinks filling in Glass bottle with Twist Off Cap.

The three functions of washing, filling and capping are in one unit. Whole process is automatic.

The height of bottle washing, filling and capping can be adjusted to adapt to different height containers, and it is convenient to replace bottle type.

Adopt advanced variable frequency speed control device. The main electrical components are international famous brands.

The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low.

It is the ideal equipment for mid-scale & small-scale juice production factory.

Overall View of Juice Filling Line

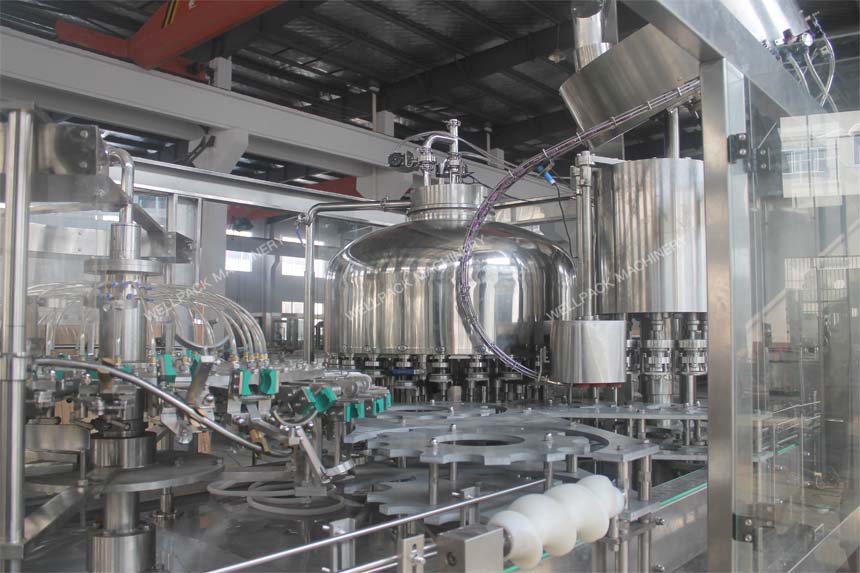

Inner View of Juice Filling Line

View of Washing Part

Bottle Washing:

1).Enhanced food safety: Stainless steel 304/316L for all components in contact with liquid.

2).Each flushing head is equipped with a self-made stainless steel control water valve, which greatly saves water and reduces the residual water in the bottle.

View of Filling Part

Bottle Filling:

1).304/316 Stainless steel high precision filling valves.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valves are reasonably structured, adopt high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Adopt hot filling method, filling temperate is set at 80℃ to 85℃ with temperature detection device and circumfluence device.

6).Equipped with CIP circulation channels.

View of Capping Part

Bottle Capping:

1). The capping machine includes capping head, cap unscrambler and cap tunnel.

2). The hopper is equipped with photoelectric switch to control the cap feeding automatically.

3). No bottle no capping. Automatic stop when lack of bottle.

4). Capping effect: Excellent sealing quality, cap appearance without abrasion.

5). Capping is stable and reliable, defective rate ≤0.2%.

Glass Bottle with Twist Off Cap Samples

Reference Sheet Of Juice Filling Line Series Equipment:

For more details & info. of the Juice Filling Line, welcome to enquire now.
