Fruit Juice Filling Machine

Fruit Juice Filling Machine

This HCGF Series Fruit Juice Filling Machine is mainly used for all kinds of juice such as orange juice, mango juice, pineapple juice & tea etc. Non-gas contained drinks filling in PET bottle.

The three functions of washing, filling and capping are in one unit.

Adopt hanging clamping bottleneck way to convey bottle, thus convenient to replace the bottle type.

Adopt advanced variable frequency speed control device.

The main electrical components are international famous brands.

It is the ideal equipment for mid-scale & small-scale juice production factory.

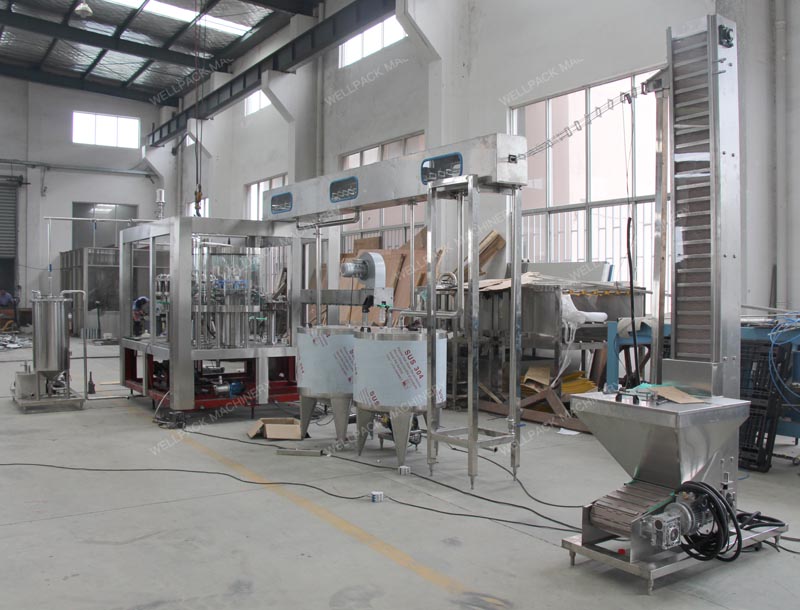

Overall View of Fruit Juice Filling Machine

Back View & Side View of Fruit Juice Filling Machine

Inner View of Fruit Juice Filling Machine

View of Washing Part

Washing Part of Fruit Juice Filling Machine

1).Enhanced food safety: Stainless steel 304/316L for all components in contact with liquid.

2).Adopting overturning bottle clamp: Avoid touching bottle screw mouth to ensure absolute hygiene.

3).Unique atomizing spay nozzle: High efficiency to clean any part of bottle inner wall and saves rinsing water.

View of Filling Part

Filling Part of Fruit Juice Filling Machine

1).304/316 Stainless steel high precision filling valves.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valves are reasonably structured, adopt high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Adopt hot filling method, filling temperate is set at 85℃ to 90℃ with temperature detection device and circumfluence device.

6).Equipped with CIP circulation channels.

View of Capping Part

Capping part of Fruit Juice Filling Machine

1).The capping system applies advanced French technology- when clamp the cap will screw immediately via magnetic torque type capping head.

2).All 304/316 stainless steel construction.

3).No bottle no capping.

4).Automatic stop when lack of bottle.

5).Capping effect is stable and reliable,defective rate ≤0.2%

Reference Sheet Of Fruit Juice Filling Machine Series Equipment：

For more details & info. of the Fruit Juice Filling Machine, welcome to enquire now.
