Juice Bottling Machine

Juice Bottling Machine

This HCGF Series Juice Bottling Machine is mainly used for all kinds of juice such as orange juice, mango juice, pineapple juice & tea etc. Non-gas contained drinks filling in PET bottle.

The three functions of washing, filling and capping are in one unit.

Adopt hanging clamping bottleneck way to convey bottle, thus convenient to replace the bottle type.

Adopt advanced variable frequency speed control device.

The main electrical components are international famous brands.

It is the ideal equipment for mid-scale & small-scale juice production factory.

Over View of Juice Bottling Machine

Empty Bottle Input Air Conveyor

Front View of Juice Bottling Machine

PET Cap Online Sterilizing and Rinsing System

Inner View of Juice Bottling Machine

View of Washing Part

Washing Part of Juice Bottling Machine

1).Enhanced food safety: Stainless steel 304/316L for all components in contact with liquid.

2).Adopting overturning bottle clamp: Avoid touching bottle screw mouth to ensure absolute hygiene.

3).Unique atomizing spay nozzle: High efficiency to clean any part of bottle inner wall and saves rinsing water.

View of Filling Part

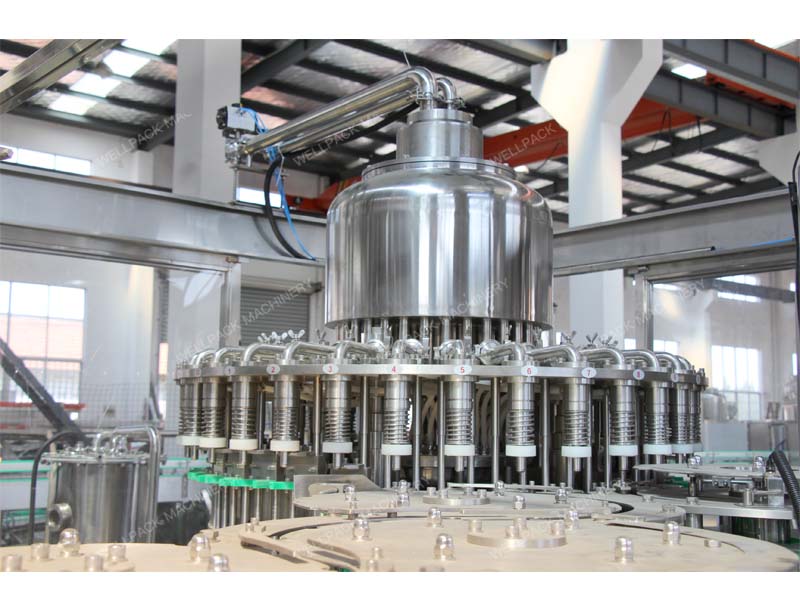

Filling Part of Juice Bottling Machine

1).304/316 Stainless steel high precision filling valves.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valves are reasonably structured, adopt high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Adopt hot filling method, filling temperate is set at 85℃ to 90℃ with temperature detection device and circumfluence device.

6).Equipped with CIP circulation channels.

View of Capping Part

Capping Part of Juice Bottling Machine

1).The capping system applies advanced French technology- when clamp the cap will screw immediately via magnetic torque type capping head.

2).All 304/316 stainless steel construction.

3).No bottle no capping.

4).Automatic stop when lack of bottle.

5).Capping effect is stable and reliable,defective rate ≤0.2%

Packed Bottle Samples

Reference Sheet Of Juice Bottling Machine Series Equipment：

For more details & info. of the Juice Bottling Machine, welcome to enquire now.
