Juice Packing Machine

Juice Packing Machine

This HCGF Series Juice Packing Machine is mainly used for all kinds of juice such as orange juice, mango juice, pineapple juice & tea etc. Non-gas contained drinks packing in PET bottle.

The functions of filling and capping are in one unit.

Adopt hanging clamping bottleneck way to convey bottle, thus convenient to replace the bottle type.

Adopt advanced variable frequency speed control device.

The main electrical components are international famous brands.

It is the ideal equipment for mid-scale & small-scale juice production factory.

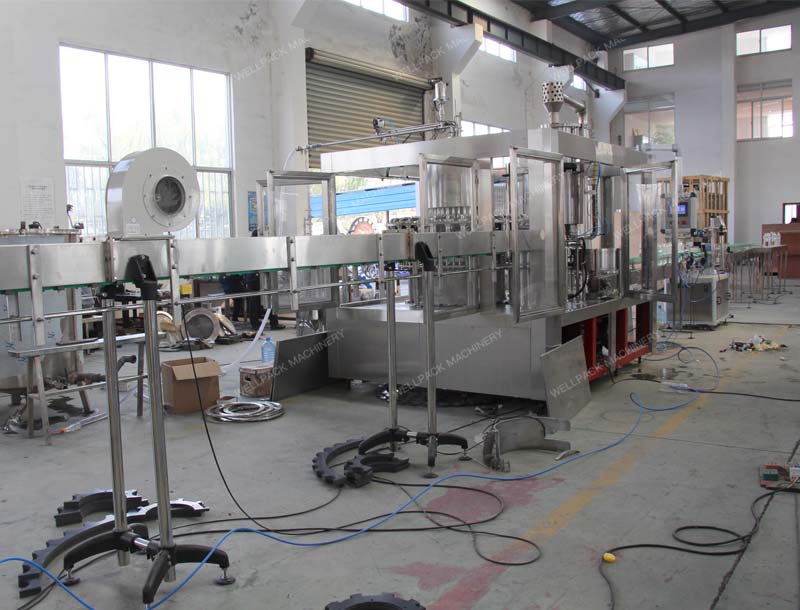

Overall View of Juice Packing Machine

Empty Bottle Input Air Conveyor

Front Inner View of Juice Packing Machine

Back Inner View of Juice Packing Machine

View of Filling Part

Filling Part of Juice Packing Machine

1).304/316 Stainless steel high precision filling valves.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valves are reasonably structured, adopt high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Adopt hot filling method, filling temperate is set at 85℃ to 90℃ with temperature detection device and circumfluence device.

6).Equipped with CIP circulation channels.

View of Capping Part

Capping Part of Juice Packing Machine

1).The capping system applies advanced French technology- when clamp the cap will screw immediately via magnetic torque type capping head.

2).All 304/316 stainless steel construction.

3).No bottle no capping.

4).Automatic stop when lack of bottle.

5).Capping effect is stable and reliable,defective rate ≤0.2%

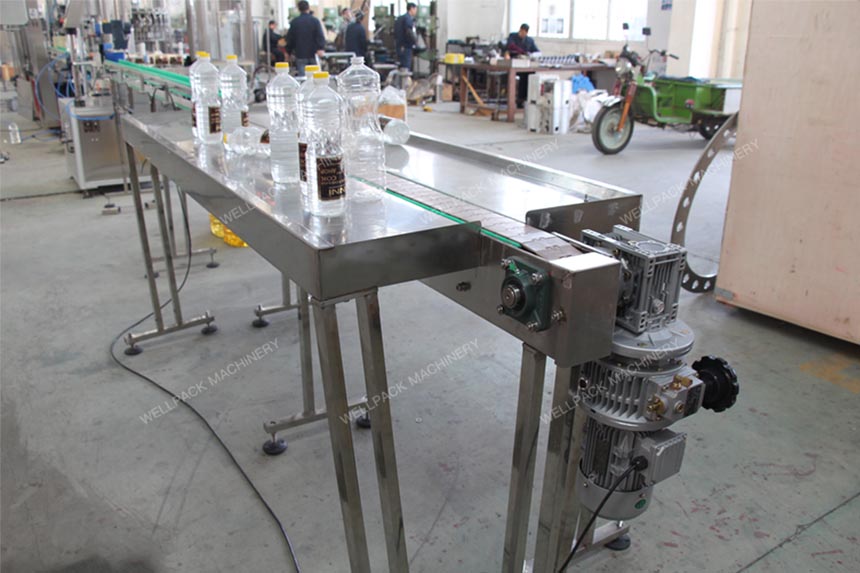

Bottle Output Conveyor

Sealed Bottle Samples

Reference Sheet Of Juice Packing Machine Series Equipment：

For more details & info. of the Juice Packing Machine, welcome to enquire now.
