Vial Filling

This FCGF Series Vial Filling Equipment is mainly used for producing Oral Liquid in small glass bottle with Aluminum Anti-theft Cap.

The three functions of washing, filling and capping are in one unit. Whole process is automatic.

The height of bottle washing, filling and capping can be adjusted to adapt to different height containers, and it is convenient to replace bottle type.

The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low.

It is the ideal equipment for mid-scale & small-scale Oral Liquid factory.

Overall View of Vial Filling Equipment

Empty Vial Input of Vial Filling Equipment

Front View of Vial Filling Equipment

Inner View of Vial Filling Equipment

View of Rinsing Part

Rinsing Part of Vial Filling Equipment

1).Enhanced food safety: Stainless steel 304/316L for all components in contact with liquid.

2).Each flushing head is equipped with a self-made stainless steel control water valve, which greatly saves water and reduces the residual water in the bottle.

View of Filling Part

Filling Part of Vial Filling Equipment

1).304/316 Stainless steel high precision filling valves.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valve adopts high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Using micro negative pressure filling method to ensure the accuracy of liquid level.

6).The filling process bottle alignment is accurate: the filling machine has the Pre-cover function with centering cover, ensures the bottle mouth and filling valve mouth to seal accurately, eliminates the leakage phenomenon caused by the bottle body skew, and truly reduces the loss of liquid.

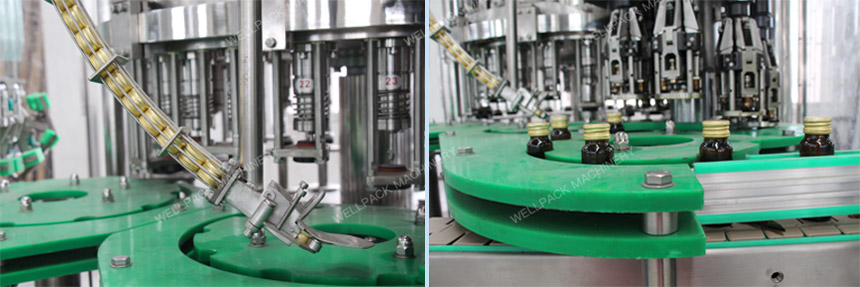

View of Capping Part

Capping Part of Vial Filling Equipment

1).The capping machine includes capping head, cap online rinsing system and cap tunnel.

2).The hopper is equipped with photoelectric switch to control the cap feeding automatically.

3).No bottle no capping. Automatic stop when lack of bottle.

4).The capping is continuous rolling type. The lower part of the capping head has a centering cover, which makes the output of bottle more smoothly.

5).Capping effect is stable and reliable, defective rate ≤0.2%

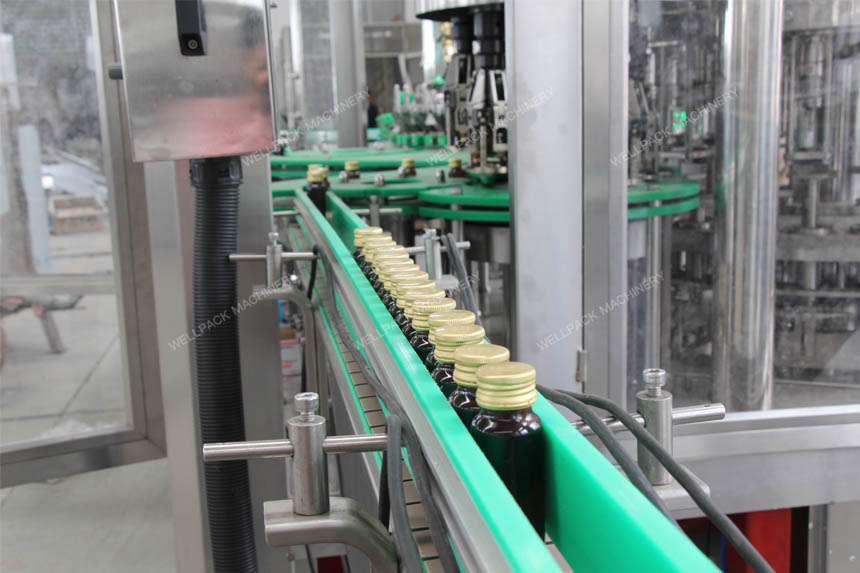

Sealed Vial Output of Vial Filling Equipment

Aluminum Anti-theft Cap Online Rinsing System

Reference Sheet Of Vial Filling Series Equipment:

For more details & info. of the Vial Filling Equipment, welcome to enquire now.
