Plastic Can Sealing Machine

Share:

Function: Sealing cans after filling.
Model: FBZ-1 (Sealing head:1)
Capacity: 500-2000CPH
Packaging Type: 200-2000ml plastic cans
Machine material: SUS 304
Overall size (L*W*H): 930*700*1850mm
Weight: 500KG
Certificate: CE ISO SGS
Warranty: 3 Years

Product Description

Plastic Can Sealing Machine

This can sealing machine is mainly used for sealing tin cans, aluminum cans and plastic cans. It's the ideal equipment for food factory for can sealing.

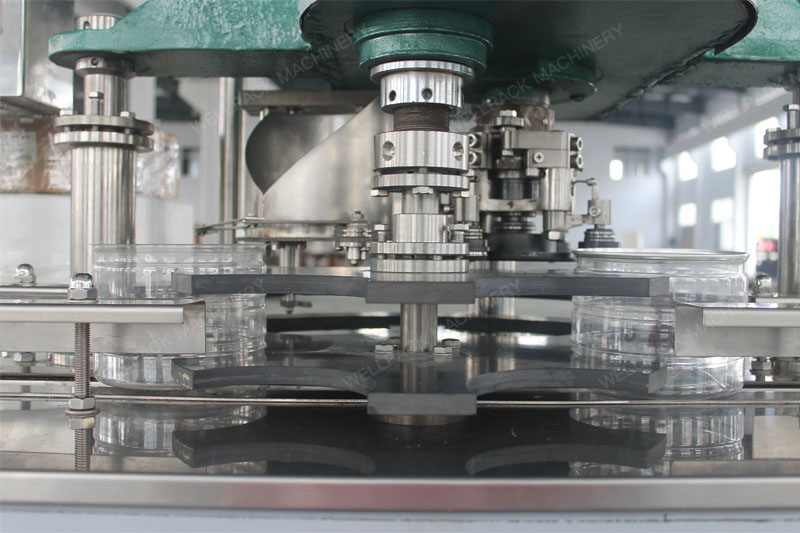

Front View Of Plastic Can Sealing Machine

Plastic Can Sealing Machine

Detail View of Plastic Can Sealing Machine

Plastic Can Sealing Machine

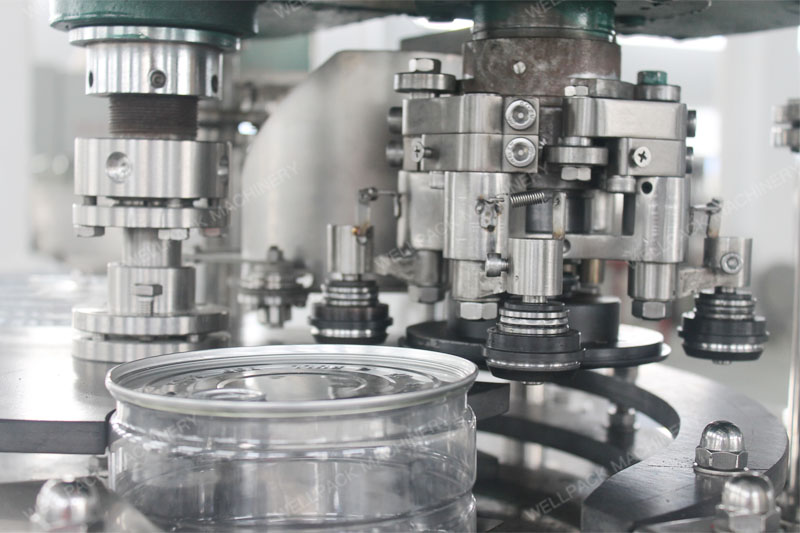

Sealing head Of Plastic Can Sealing Machine

Plastic Can Sealing Machine

Plastic Can Samples

Plastic Can Sealing Machine

Can sealing part:

1).Adopts Taiwan sealing roller and pressing head technology to make sure the quality of sealing.

2).The control system of dropping lid with can and no dropping lid without can reduce lids loss rate.


Special Note:

Special size plastic can - the diameter is very large or very small, customizing design of the seamer is offered.


Reference Sheet Of Plastic Can Sealing Machine Series Equipment :

ModelFBZ-1FBZ-4FBZ-6FBZ-8FBZ-10
Sealing heads146810
Capacity: CPH1000-24002000-50003000-80005000-1200012000-18000
Power (KW)0.752.22.22.22.2
Overall size (mm)930*700*18501270*1050*19001270*1050*19001470*1250*19001670*1480*1900
Weight (KG)5001200120018002000


For more details & info. of the Plastic Can Sealing Machine,welcome to enquire now.
