Plastic Bottle Capper
Function: Capping Plastic Bottle with Plastic Cap
Model: SXG-4
Capping head:4
Capacity: 2000-4000BPH
Plastic bottle size: 200-2000ml
Machine material: SUS 304
Overall size (L*W*H): 1130*820*2350mm
Weight: 700KG
Certificate: CE ISO
Warranty: 3 Years
Plastic Bottle Capper
This Plastic Bottle Capper is used for capping Plastic bottle with Plastic cap. It's widely used in beverage factory.
This machine is equipped with the bottle inlet screw arbor and the bottle inlet & outlet dial wheel.
The capping system applies advanced French technology, when clamp the cap will screw immediately by magnetic torque type capping head.
The height of the capping machine can be adjusted to adapt to different height bottles, and it is convenient to replace bottle type.
The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low (≤0.2%).
It is the ideal equipment for mid-scale & small-scale beverage factory.

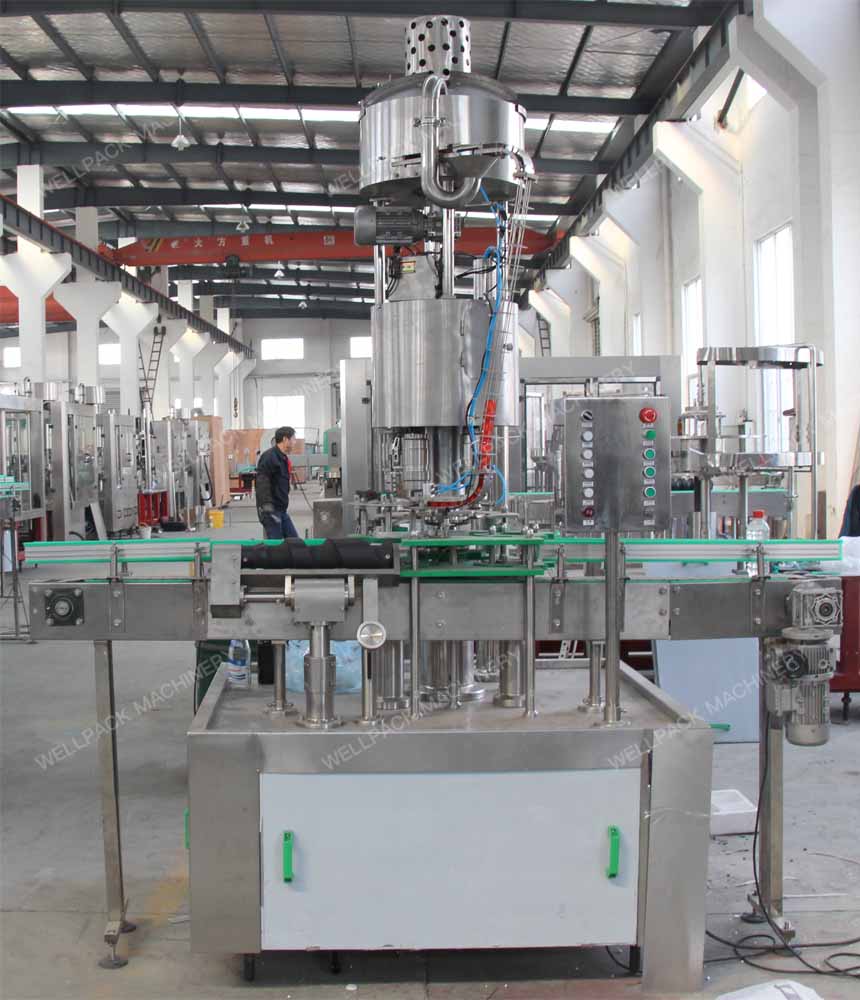

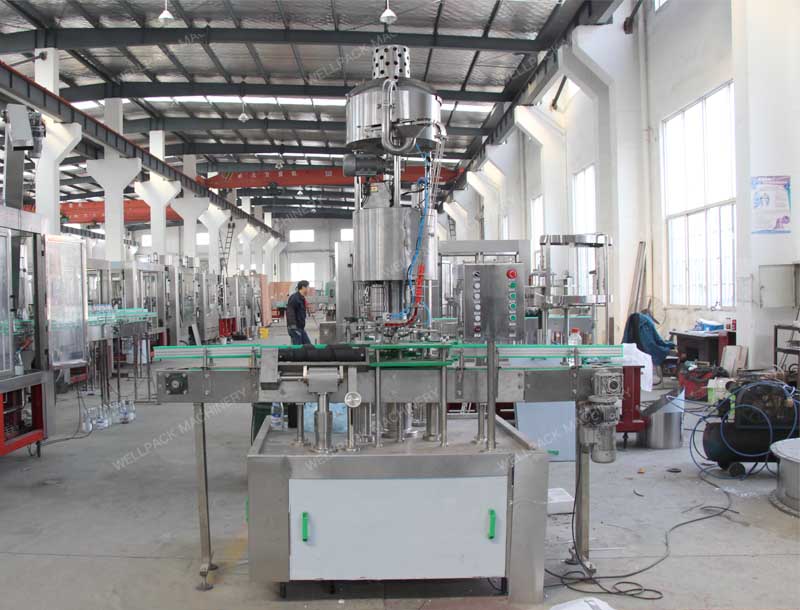

Front View of Plastic Bottle Capper

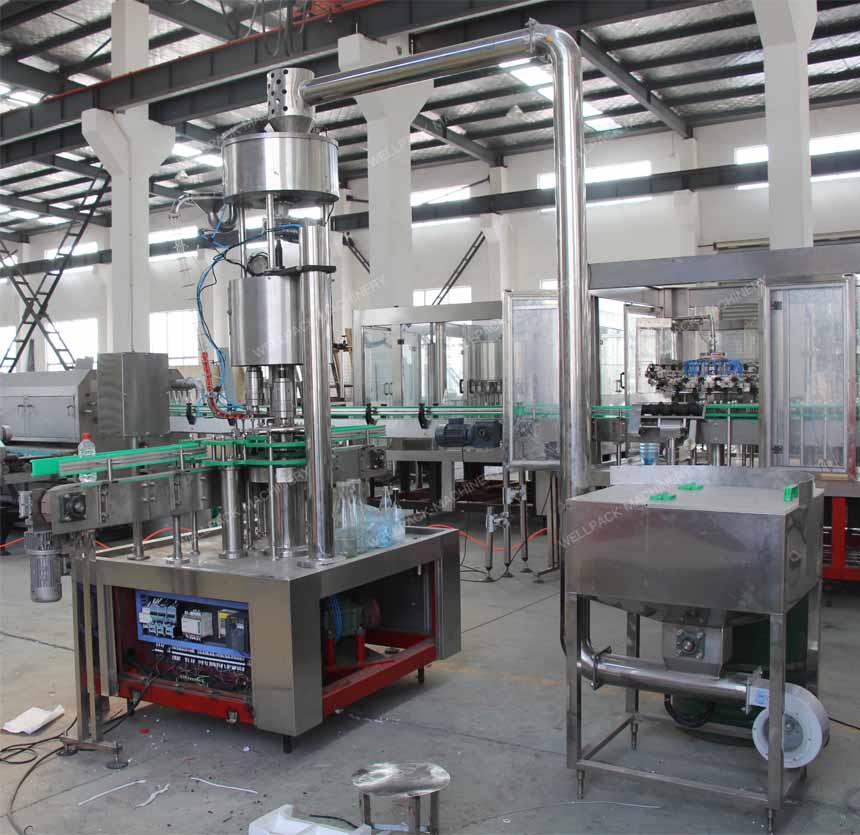

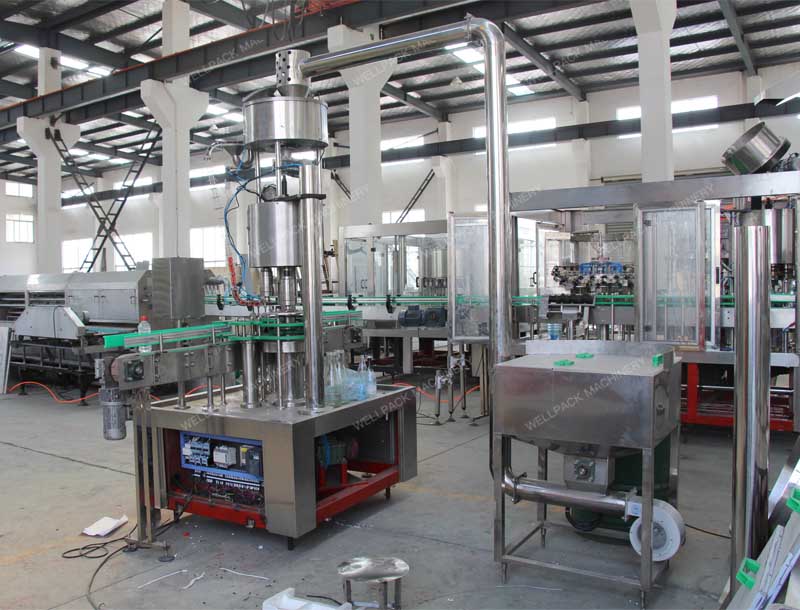

Back View of Plastic Bottle Capper with Cap Feeder

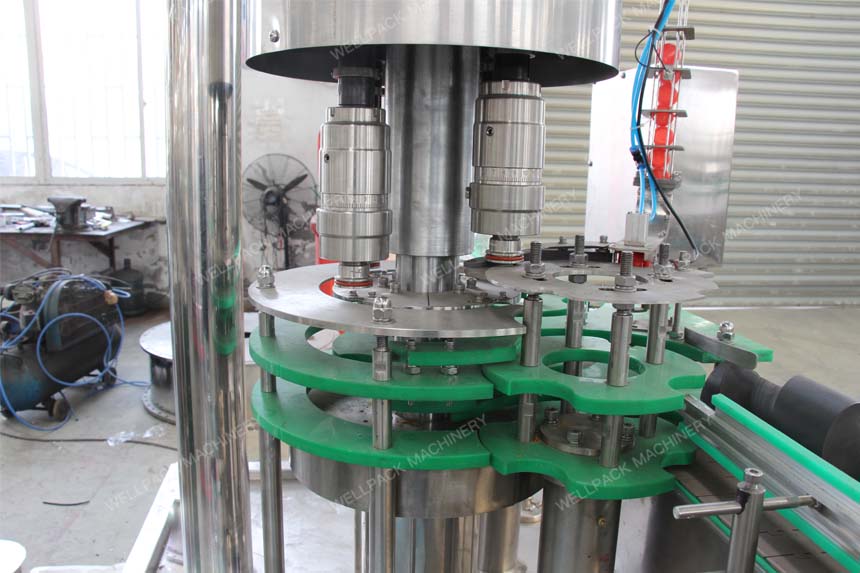

Detail View of Plastic Bottle Capper

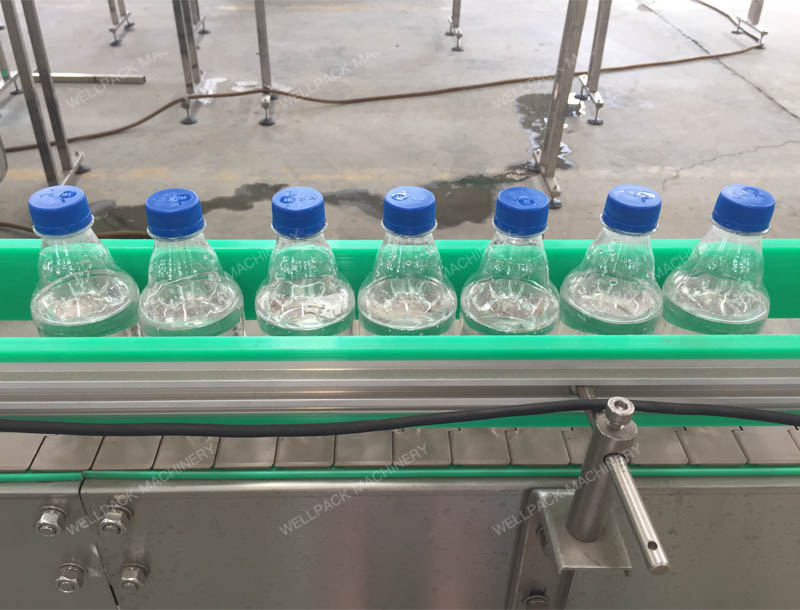

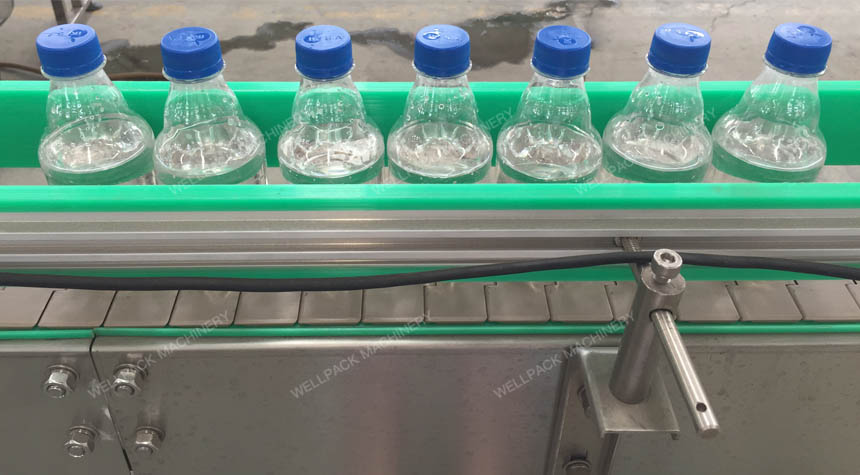

Sealed Plastic Bottle Samples
Reference Sheet Of Plastic Bottle Capper Series Equipment:
| Model | SXG-1 | SXG-6 | SXG-8 | SXG-10 | SXG-12 |
| Capping head | 1 | 6 | 8 | 10 | 12 |
| Capacity: BPH | 1000-2400 | 3000-6000 | 5000-10000 | 8000-12000 | 10000-16000 |
| Plastic bottle shape | Round & Square & Flat & Special shaped bottle | ||||
| Bottle size | Diameter:50-110mm; Height:150-340mm | ||||
| Cap type | PET screw cap | ||||
| Total power (KW) | 1 | 1 | 1 | 1 | 1 |
| Overall size (mm) | 930*700*2100 | 1150*850*2350 | 1200*930*2350 | 1350*1100*2350 | 1500*1280*2350 |
| Weight (KG) | 500 | 1000 | 1200 | 1350 | 1450 |
For more details & info. of the Plastic Bottle Capper, welcome to enquire now.
