Liquor Filling Machine

Share:

Function: Bottle Washing Filling Capping
Filling Material: Spirits,Liquor, Alcohol, Wine
Model: FCGF24-18-6
Capacity: 3000-6000BPH
Packaging Type: 200-1500ml Glass bottle with Aluminium cap
Machine material: SUS 304/316L
Overall size (L*W*H): 2650*1850*2500mm
Weight: 3000KG
Certificate: CE ISO
Warranty: 3 Years

Product Description

Liquor Filling Machine

This FCGF Series Liquor Filling Machine is mainly used for producing Spirits, Liquor, Alcohol, Wine etc. Non-gas contained drinks in glass bottle with Aluminum screw Cap.

The three functions of washing, filling and capping are in one unit. Whole process is automatic.

The height of bottle washing, filling and capping can be adjusted to adapt to different height containers, and it is convenient to replace bottle type.

The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low.

It is the ideal equipment for mid-scale & small-scale spirits factory.

Spirits Filling Machine

Spirits Filling Machine

Bottle Washing:

1).Enhanced food safety: Stainless steel 304/316L for all components in contact with liquid.

2).Each flushing head is equipped with a self-made stainless steel control water valve, which greatly saves water and reduces the residual water in the bottle.

Spirits Filling Machine

Spirits Filling Machine

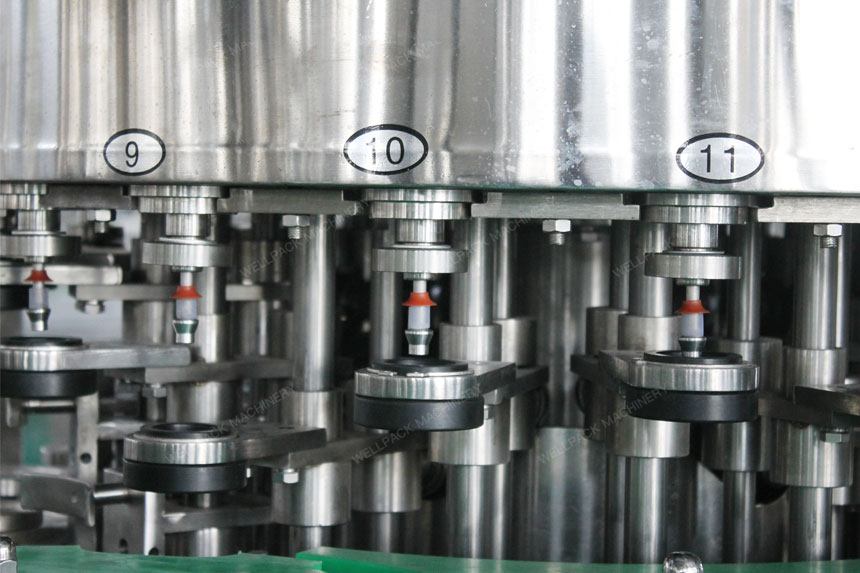

Bottle Filling:

1).304/316 Stainless steel high precision filling valves.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valve adopts high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Using micro negative pressure filling method to ensure the accuracy of liquid level.

6).The filling process bottle alignment is accurate: the filling machine has the Pre-cover function with centering cover, ensures the bottle mouth and filling valve mouth to seal accurately, eliminates the leakage phenomenon caused by the bottle body skew, and truly reduces the loss of spirits.

Spirits Filling Machine

Spirits Filling Machine

Bottle Capping:

1).The capping machine includes capping head,cap unscrambler and cap tunnel.

2).The hopper is equipped with photoelectric switch to control the cap feeding automatically.

3).No bottle no capping. Automatic stop when lack of bottle.

4).The capping is continuous rolling type. The lower part of the capping head has a centering cover, which makes the output of bottle more smoothly.

5).Capping effect is stable and reliable, defective rate ≤0.2%

Spirits Filling Machine

Spirits Filling Machine

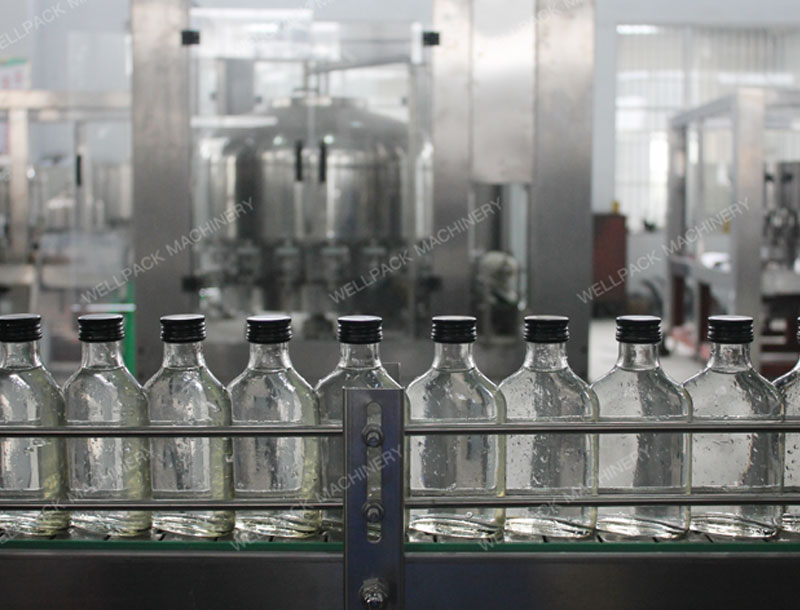

Liquor Filling Machine Testing In Factory Before Delivery:

Spirits Filling Machine

Reference Sheet Of Liquor Filling Machine Series Equipment :

ModelFCGF24-18-6FCGF32-24-8FCGF40-32-10
Washing/Filling/Capping heads24-18-632-24-840-32-10
Capacity: BPH (500ml bottle)3000-60005000-80008000-12000
Bottle shapeRound & Square & Flat & Special shaped bottle
Bottle sizeDiameter:50-100mm; Height:100-340mm
Cap typeAluminum screw cap
Filling precision≤±2mm
Power (KW)4.55.26.5
Overall size (mm) (L*W*H)2650*1850*25003000*2200*25003800*2850*2500
Weight (KG)300040005200


For more details & info. of the Liquor Filling Machine,welcome to enquire now!
