Single Head Can Seamer
Function: Seaming cans after filling
Model: FBZ-1 (Seaming head:1)
Capacity: 500-2000CPH
Packaging Type: 50-2000ml tin cans
Machine material: SUS 304
Overall size (L*W*H): 930*700*1850mm
Weight: 500KG
Certificate: CE ISO SGS
Warranty: 3 Years
Single Head Can Seamer
This can seamer machine is mainly used for seaming tin cans, aluminum cans and PET cans.
It's the ideal equipment for food factory, beverage factory and brewery factory for can seaming.

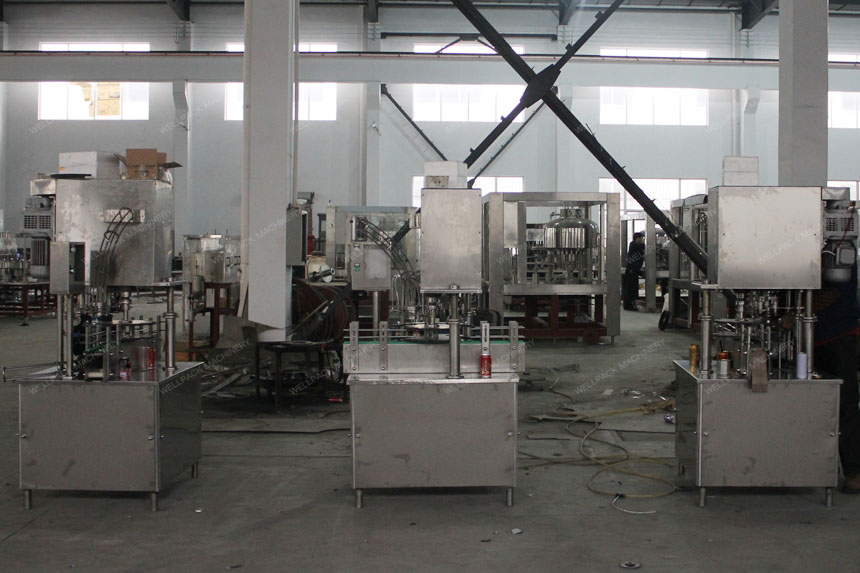

Overall View of Single Head Can Seamer
Side View of Single Head Can Seamer
Front View of Single Head Can Seamer
Seaming Head of Single Head Can Seamer
Can seaming part:
1).Adopts Taiwan seaming roller and pressing head technology to make sure the quality of sealing.
2).The control system of dropping lid with can and no dropping lid without can reduce lids loss rate.
Special Note:
Special size tin can - the diameter is very large or very small, customizing design of the seamer is offered.
Reference Sheet Of Single Head Can Seamer Series Equipment :
| Model | FBZ-1 | FBZ-4 | FBZ-6 | FBZ-8 | FBZ-10 |
| Sealing heads | 1 | 4 | 6 | 8 | 10 |
| Capacity: CPH | 1000-2400 | 2000-5000 | 3000-8000 | 5000-12000 | 12000-18000 |
| Power (KW) | 0.75 | 2.2 | 2.2 | 2.2 | 2.2 |
| Overall size (mm) | 930*700*1850 | 1270*1050*1900 | 1270*1050*1900 | 1470*1250*1900 | 1670*1480*1900 |
| Weight (KG) | 500 | 1200 | 1200 | 1800 | 2000 |
For more details & info. of the Single Head Can Seamer,welcome to enquire now.
