Tin Can Sealing Machine
Function: Sealing cans after filling.
Model: FBZ-6 (Sealing head:6)
Capacity: 4000-6000CPH
Packaging Type: 50-2000ml tin cans
Machine material: SUS 304
Overall size (L*W*H): 1270*1050*1900mm
Weight: 1200KG
Certificate: CE ISO SGS
Warranty: 3 Years
Tin Can Sealing Machine
This can sealing machine is mainly used for sealing tin cans, aluminum cans and PET cans.
It's the ideal equipment for food factory, beverage factory and brewery factory for can sealing.

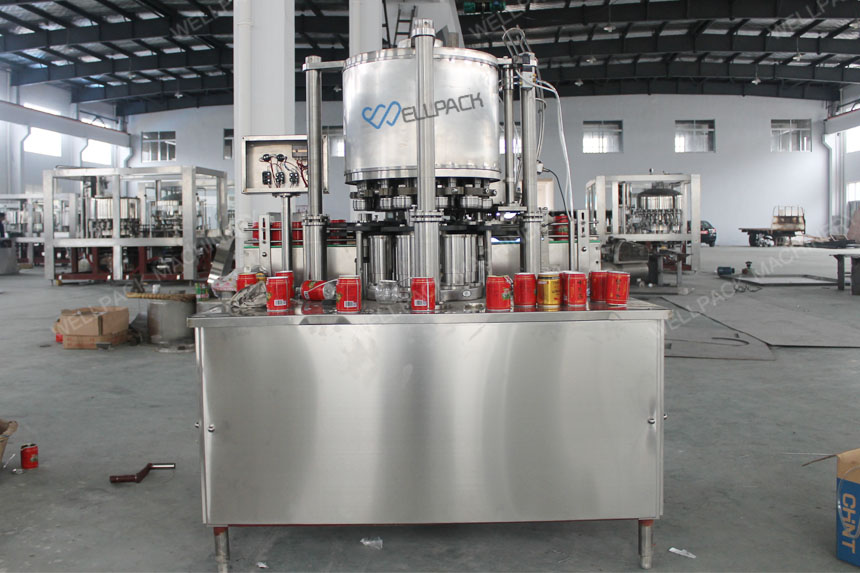

Front View Of Tin Can Sealing Machine
Back View Of Tin Can Sealing Machine

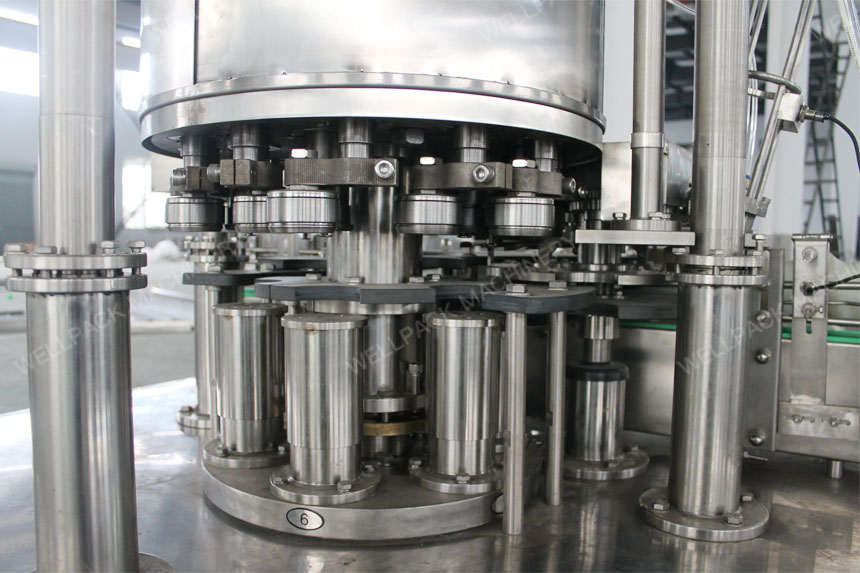

Sealing heads Of Tin Can Sealing Machine
Tin Can Samples
Can sealing part:
1).Adopts Taiwan sealing roller and pressing head technology to make sure the quality of sealing.
2).The control system of dropping lid with can and no dropping lid without can reduce lids loss rate.
Special Note:
Special size tin can - the diameter is very large or very small, customizing design of the seamer is offered.
Reference Sheet Of Tin Can Sealing Machine Series Equipment :
| Model | FBZ-1 | FBZ-4 | FBZ-6 | FBZ-8 | FBZ-10 |
| Sealing heads | 1 | 4 | 6 | 8 | 10 |
| Capacity: CPH | 1000-2400 | 2000-5000 | 3000-8000 | 5000-12000 | 12000-18000 |
| Power (KW) | 0.75 | 2.2 | 2.2 | 2.2 | 2.2 |
| Overall size (mm) | 930*700*1850 | 1270*1050*1900 | 1270*1050*1900 | 1470*1250*1900 | 1670*1480*1900 |
| Weight (KG) | 500 | 1200 | 1200 | 1800 | 2000 |
For more details & info. of the Tin Can Sealing Machine,welcome to enquire now.
