Soda Bottling Machine

Soda Bottling Machine

This DCGF series Soda Bottling Machine is used for filling carbonated soft drink,such as Cola, Sprite,Soda and other carbonated drink in PET bottle.

The three functions of washing, filling and capping are in one unit. Whole process is automatic.

Main components are processed precisely by CNC machine tool.

The machine adopts advanced photoelectricity to detect running status.

It realizes man-machine conversation via touch screen.

Overall View of Soda Bottling Machine

Inner View of Soda Bottling Machine

Empty Bottle Input Air Conveyor

View of Washing Part

Washing Part of Soda Bottling Machine

1).Enhanced food safety: Stainless steel 304/316L for all components in contact with liquid.

2).Adopting overturning bottle clamp: Avoid touching bottle screw mouth to ensure absolute hygiene.

3).Unique atomizing spay nozzle: High efficiency to clean any part of bottle inner wall and saves rinsing water.

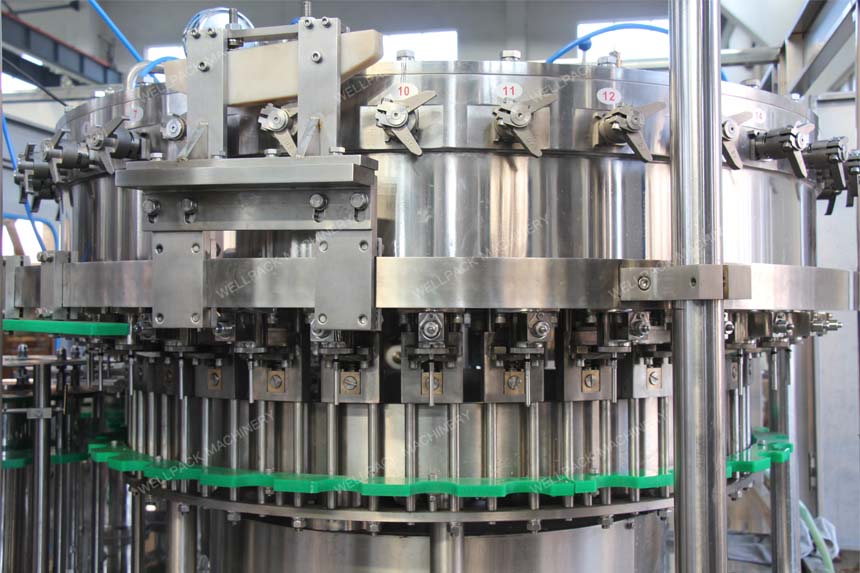

View of Filling Part

Filling Part of Soda Bottling Machine

1).304/316 Stainless steel high precision filling valves.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valves are reasonably structured, adopt high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5). Adopt isobaric filling method

View of Capping Part

Capping Part of Soda Bottling Machine

1).The capping system applies advanced French technology- when clamp the cap will screw immediately via magnetic torque type capping head.

2).All 304/316 stainless steel construction.

3).No bottle no capping.

4).Automatic stop when lack of bottle.

5).Capping effect is stable and reliable,defective rate ≤0.2%

PET Cap Online Sterilizing and Rinsing System

Sealed Bottle Samples

Reference Sheet Of Soda Bottling Machine Series Equipment:

For more details & info. of the Soda Bottling Machine,welcome to enquire now.
