Vial Filling Line (Custom Design Model)

Vial Filling Line (Custom Design Model)

This FCGF Series Vial Filling Line is mainly used for producing Oral Liquid in small glass bottle with Aluminum Screw Cap (and Plastic Outer Cover).

The three functions of washing, filling and capping are in one unit. Whole process is automatic.

The height of bottle washing, filling and capping can be adjusted to adapt to different height containers, and it is convenient to replace bottle type.

The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low.

It is the ideal equipment for mid-scale & small-scale Oral Liquid factory.

Front View of Vial Filling Line

Back View of Vial Filling Line

View of Washing Part

Washing Part of Vial Filling Line

1).Enhanced food safety: Stainless steel 304/316L for all components in contact with liquid.

2).Each flushing head is equipped with a self-made stainless steel control water valve, which greatly saves water and reduces the residual water in the bottle.

View of Filling Part

Filling Part of Vial Filling Line

1).304/316 Stainless steel fine polish filling tank without death corner.

2).304/316 Stainless steel filling valves (Parts contact with material are all made of 304/316 Stainless steel).

3).The piston and piston barrel are treated by the top technology, cooperate accurately, durable and wearable.

4).Specialize designed filling head with vacuum suction system guarantees no drop or leakage during production.

5).Adopting Piston barrel quantitative filling principle.

6).Three points liquid level control, fills precisely.

7).Automatic speed adjustment via frequency conversion, machine works stable.

8).Bottle in and out protection.

9).Filling with bottles and no filling without bottles.

View of Capping Part

View of Aluminum Screw Cap Capping Part

View of Plastic Outer Cover Capping Part

Aluminum Screw Cap Capping Part

1).The capping machine includes capping head, cap elevator and cap tunnel.

2).The hopper is equipped with photoelectric switch to control the cap feeding automatically.

3).No bottle no capping. Automatic stop when lack of bottle.

4).The capping is continuous rolling type.

5).Capping effect is stable and reliable, defective rate ≤0.2%

Plastic Outer Cover Capping Part

1).The capping machine includes capping head, cap elevator and cap tunnel.

2).The hopper is equipped with photoelectric switch to control the cap feeding automatically.

3).No bottle no capping. Automatic stop when lack of bottle.

4).The capping is continuous pressing type.

5).Capping effect is stable and reliable, defective rate ≤0.2%

Sealed Vial Samples

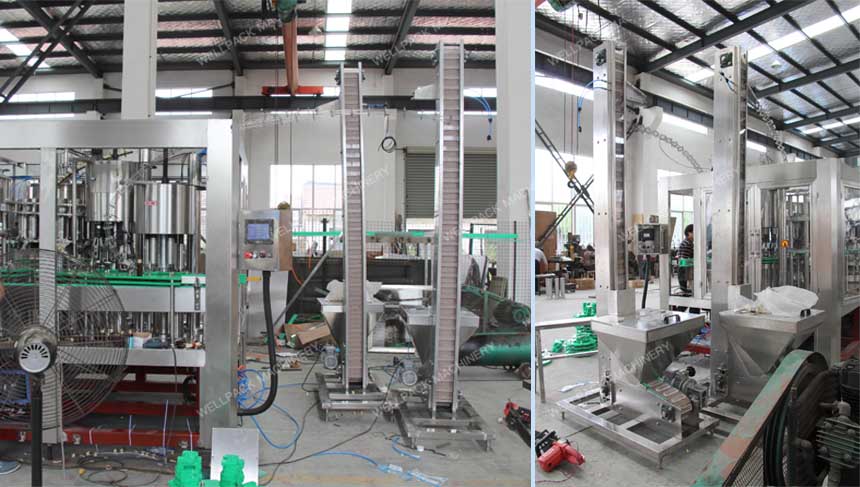

View of Cap Elevator

Reference Sheet Of Vial Filling Line Series Equipment:

For more details & info. of the Vial Filling Line, welcome to enquire now.
