Liquor Bottle Filling Machine

Liquor Bottle Filling Machine

This FGF Series Liquor Bottle Filling Machine is mainly used for producing Spirits, Liquor, Alcohol, Wine etc. Non-gas contained drinks in glass bottle with Aluminum Ropp Cap.

The functions of filling and capping are in one unit. Whole process is automatic.

The height of bottle filling and capping can be adjusted to adapt to different height containers, and it is convenient to replace bottle type.

The whole machine is designed scientifically and reasonably, the appearance is good looking, the maintenance and repair is rather convenient, the wastage rate is quite low.

It is the ideal equipment for mid-scale & small-scale liquor factory.

Overall View of Liquor Bottle Filling Machine

Inner View of Liquor Bottle Filling Machine

View of Filling Part

Main Feature of Bottle Filling:

1).304/316 Stainless steel high precision filling valves.

2).304/316 Stainless steel fine polish filling tank without death corner.

3).Filling valve adopts high filling speed and mass flow rate valve which control liquid level accurately without loss.

4).Liquid level in filling tank is controlled via float-ball.

5).Using micro negative pressure filling method to ensure the accuracy of liquid level.

6).The filling process bottle alignment is accurate: the filling machine has the Pre-cover function with centering cover, ensures the bottle mouth and filling valve mouth to seal accurately, eliminates the leakage phenomenon caused by the bottle body skew, and truly reduces the loss of spirits.

View of Capping Part

Main Feature of Bottle Capping:

1).The capping machine includes capping head, cap unscrambler and cap tunnel.

2).The hopper is equipped with photoelectric switch to control the cap feeding automatically.

3).No bottle no capping. Automatic stop when lack of bottle.

4).The capping is continuous rolling type. The lower part of the capping head has a centering cover, which makes the output of bottle more smoothly.

5).Capping effect is stable and reliable, defective rate ≤0.2%

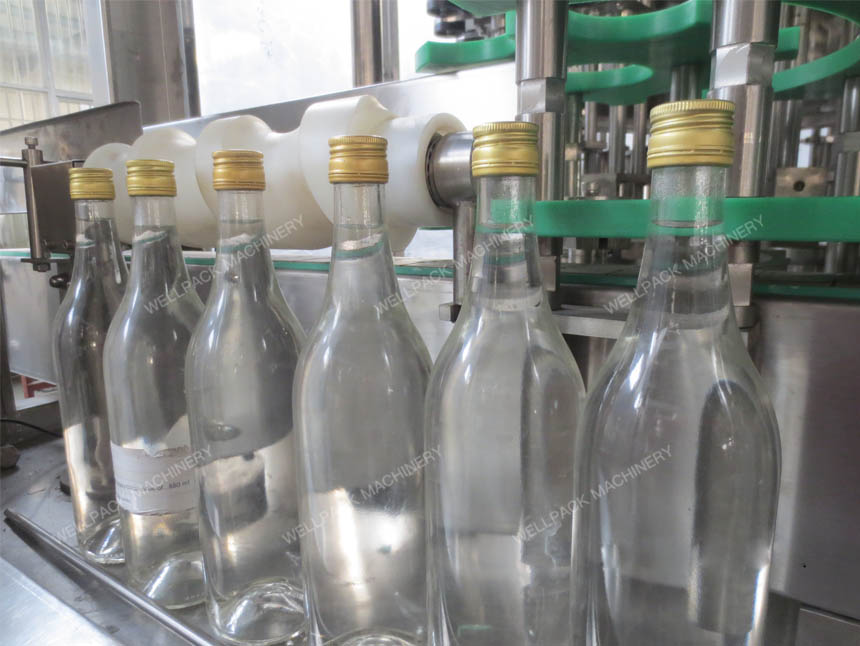

Glass Bottle with Ropp Cap Samples

Reference Sheet Of Liquor Bottle Filling Machine Series Equipment:

For more details & info. of the Liquor Bottle Filling Machine, welcome to enquire now.
