Oil Tin Sealer
Function: Sealing cans after filling
Model: FBZ-1 (Sealing head:1)
Capacity: 500-2000CPH
Packaging Type: 50-2000ml tin cans
Machine material: SUS 304
Overall size (L*W*H): 930*700*1850mm
Weight: 500KG
Certificate: CE ISO SGS
Warranty: 3 Years
Oil Tin Sealer
This sealer machine is mainly used for sealing tin cans, aluminum cans and PET cans.
It's the ideal equipment for food factory, beverage factory, brewery factory,chemical plant etc. for can sealing.

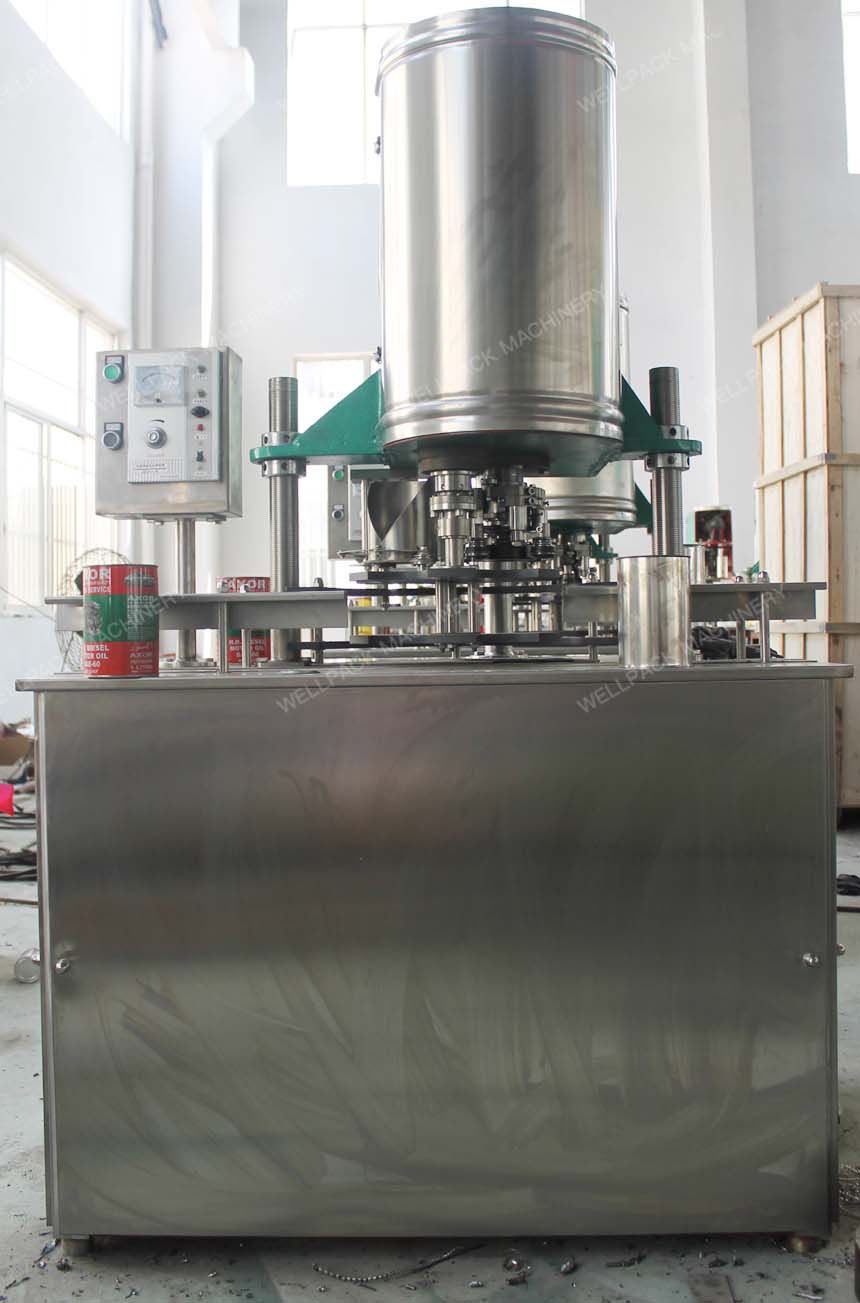

Overall View of Oil Tin Sealer
Front View of Oil Tin Sealer
Detail View of Oil Tin Sealer
Sealing Head of Oil Tin Sealer
Can sealing part:
1).Adopts Taiwan sealing roller and pressing head technology to make sure the quality of sealing.
2).The control system of dropping lid with can and no dropping lid without can reduce lids loss rate.
Special Note:
Special size tin can - the diameter is very large or very small, customizing design of the seamer is offered.
Reference Sheet Of Oil Tin Sealer Series Equipment :
| Model | FBZ-1 | FBZ-4 | FBZ-6 | FBZ-8 | FBZ-10 |
| Sealing heads | 1 | 4 | 6 | 8 | 10 |
| Capacity: CPH | 1000-2400 | 2000-5000 | 3000-8000 | 5000-12000 | 12000-18000 |
| Power (KW) | 0.75 | 2.2 | 2.2 | 2.2 | 2.2 |
| Overall size (mm) | 930*700*1850 | 1270*1050*1900 | 1270*1050*1900 | 1470*1250*1900 | 1670*1480*1900 |
| Weight (KG) | 500 | 1200 | 1200 | 1800 | 2000 |
For more details & info. of the Oil Tin Sealer,welcome to enquire now.
